Disc Spring Rope Socket Slickline Pulling Tools For Oil Well
Disc and Spring Rope Socket Rope Socket
I. Introduction
A disc and spring rope socket is used to attach wireline to the tool string.
II. General Technical Parameters
| Size | Fishing neck | Connection | PN. |
| 1.0＂ | 0.875＂ | 5/8UN | W01-02.08.00 |
| 1.25＂ | 1.187＂ | 15/16UN | W01-02.02.00 |
| 1.5＂ | 1.375＂ | 15/16UN | W01-02.04.00 |
| 1.875＂ | 1.75＂ | 1-1/16UN | W01-02.03.00 |
| 2.125＂ | 1.75＂ | 1-1/16UN | W01-02.09.00 |
| 2.5＂ | 2.313＂ | 1-9/16UN | W01-02.10.00 |
Note: More customized parts are available upon request.
III. Structure characteristics

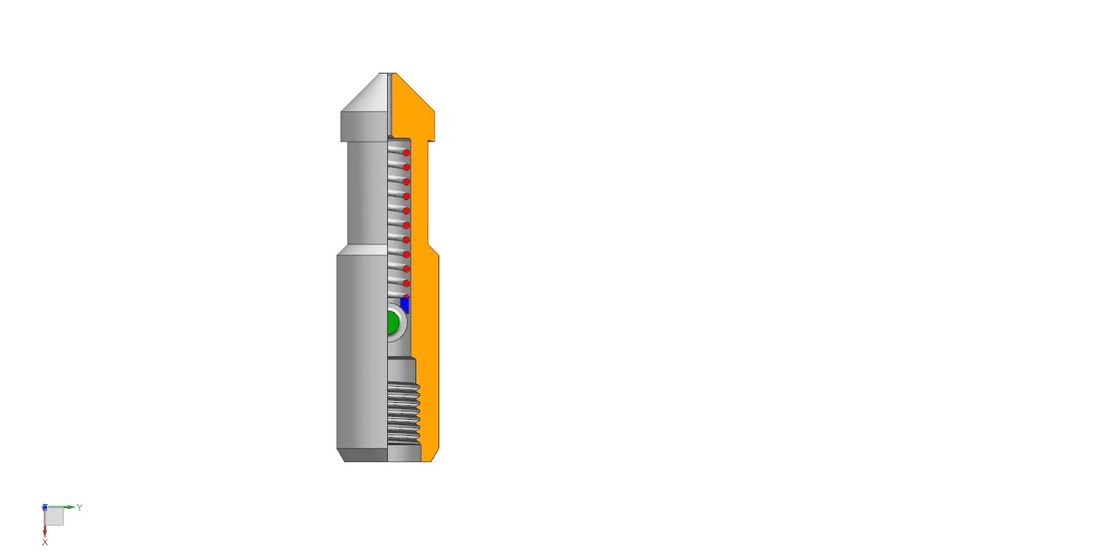

The disc and spring rope socket consists of a body with an external fishing neck, spring, guide and wire carrier.
The wireline is passed through the body, spring and guide before being wrapped tightly around the wire carrier. The short end of the wireline is firmly wrapped around the long end using several close wraps. A clean break made close to the last wrap allows the spring and guide to pass over the wraps. The knot is then installed into the body.
