1.875 Inch Alloy Steel Wireline Tool String Jar For Upward Jarring

1.875 Inch Alloy Steel Wireline Tool String Jar For Upward Jarring

  • 1.875 Inch Alloy Steel Wireline Tool String Jar For Upward Jarring
1.875 Inch Alloy Steel Wireline Tool String Jar For Upward Jarring
Product Details:
Place of Origin: China Baoji
Brand Name: Ruixin
Certification: API Q1
Model Number: 1.5inch 1.875inch 2inch 2.125inch
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1 set 3 weeks
Contact Now
Detailed Product Description
Name: Wireline Spring Jar Wireline Tool String Size: 1.5inch 1.875inch 2.125inch
Material: Alloy Steel FN: 1.375inch 1.75inch
Service: STD&H2S Function: Provide Upward Jarring During Heavy Duty Fishing
High Light:

Wireline Spring Jar

,

Wireline Tool String Jar

,

1.875 Inch Wireline Tool String

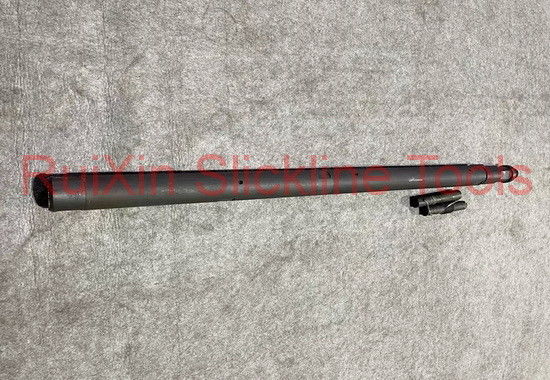

 1.875 Inch Alloy Steel Wireline Tool String Jar For Upward Jarring



Wireline Spring Jar Wireline Tool String

I. introduction
A wireline spring jar is designed to provide upward jarring during heavy duty fishing operation. It can guarantee the faultless operation with least maintenance.

ii. Structure characteristics
When
The wireline spring jar is closed, the slip on the jar stem will stretch and clamp on the extension rod under the function of spring. When lifting, the jar stem will drive the slip to pull the extension rod and squeeze the disc spring to reserve energy. When the jar stem runs for some stroke, the slip will be squeezed by the pup joint and disconnect with the extension rod. Then theenergy of disc spring will release immediately to finish the jarring effect.

III. General Technical Parameters

Size Fishing neck Connection PN.
1.5" 1.375" 15/16UN W**-0*.0*.0*
1.75" 1.375" 15/16UN W**-0*.0*.0*
1.875" 1.75" 1-1/16UN W**-0*.0*.0*
2.125" 1.75" 1-1/16UN W**-0*.0*.0*
2.5" 2.313" 1-9/16UN W**-0*.0*.0*

Note: More customized parts are available upon request.

Welcome to contact us at any time.
