Tubing Swage Wireline Tool String

Tubing Swage Wireline Tool String

  • Tubing Swage Wireline Tool String
Tubing Swage Wireline Tool String
Product Details:
Place of Origin: China Baoji
Brand Name: Ruixin
Certification: API Q1
Model Number: 1.25inch~6inch
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 1 week
Payment Terms: T/T, Western Union
Supply Ability: 1 set 1 week
Contact Now
Detailed Product Description
Name: Tubing Swage Wireline Tool String Size: 1.25inch~6inch
Material: Alloy Steel&Nickel Alloy Fish Neck: 1.187inch 1.375inch 1.75inch 2.313inch
Connection: SR,QLS,BLQJ,HDQRJ Use: Wireline &Slickline
Advantage: Adjust The ID Of The Tubing To Ensure Smooth Passage Of The Tool

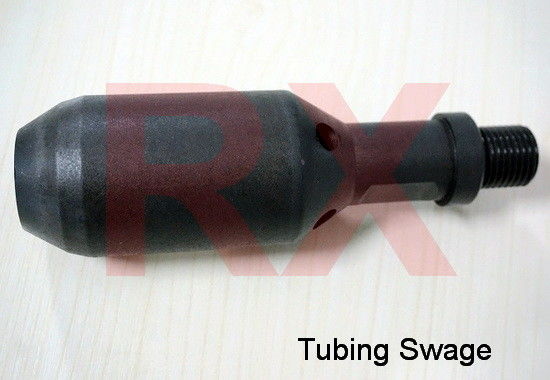

                                                           Tubing swage Wireline Tool String

I. Introduction

Tubing swage is a tool to shape the changed diameter of to guarantee that the downhole device can

pass smoothly or to get through the flavedo-type blocks at the end of tubing.

II. General Technical Parameters

OD Fishing neck Connection t PN
1.25"-1.5" 1.187" 15/16-10UN W21-03.**.00
1.5"-2" 1.375" 15/16-10UN W21-03.**.00
2"-2.5" 1.375" 15/16-10UN W21-03.**.00
2.5"-3" 1.75" 1-1/16-10UN W21-03.**.00
3"-4" 1.75" 1-1/16-10UN W21-03.**.00
4"-5" 2.313" 1-9/16-10UN W21-03.**.00

Note:more customized parts are available upon request.

III. Structural features:

The top of the tubing swage has external threads (or quick male joint) and fishing neck; the inner diameter

of waist is about equal to that of the deformed oil pipe, so there are air holes or drain holes in the middle,

and the pipe tapers off from the middle to both ends; the bottom also can be processed with threads to connect

with tools.

The whole body of tubing swage is made of alloy steel, and the hardness of the part for shaping reaches

43~45HRC through quenching and tempering.

Welcome to contact us at any time.
