Innovation Excellence
 |
| Place of Origin: | China Baoji |
| Brand Name: | Ruixin |
| Certification: | API Q1 |
| Model Number: | 1.25inch 1.5inch 2inch 2.5inch 3inch 4inch |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Wooden Box |
| Delivery Time: | 2-4weeks |
| Payment Terms: | T/T, Western Union |
| Name: | Universal Pulling Tool | Material: | Alloy Steel&Nickel Alloy |
|---|---|---|---|
| Size: | 1.25inch 1.5inch 2inch 2.5inch 3inch 4inch | Fish Neck: | 1.187inch 1.375inch 1.75inch 2.313inch 3.125inch |
| Type: | SB SM SS | Grasping Diameter: | 0.875inch 1inch 1.187inch 1.375inch 1.75inch 2.313inch 3.125inch |
| Connection: | SR,QLS,BLQJ,HDQRJ | ||
| High Light: | SS Wireline Pulling Tool,SM Wireline Pulling Tool,Pulling Tool Slickline Equipment |
||

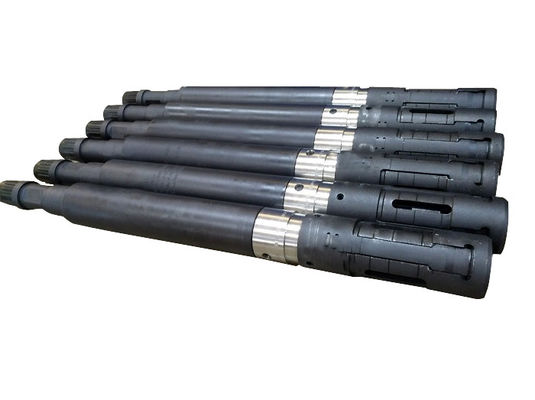

Custom SB SM SS Wireline Pulling Tool Slickline Equipment
Universal Pulling Tool Wireline Pulling Tool
I. Introduction
The Universal Pulling Tool is a combination of the conventional shear up and shear down type pulling tools. It is used to engage and retrieve equipment with external fishing necks. This has a universal core which allows the same tool to be able to retrieve devices with fishing necks of different lengths or reach (i.e., short, medium and long reach).
Ⅱ. Benefits
The tool can be converted from ‘shear up’ to ‘shear down’ mode without the need of any additional parts.
It does the same job of two different types of pulling tools i.e., ‘JD’ or ‘JU’ Series, or ‘R’ or ‘S’ Series.
The universal core can be pinned in the short, medium, or long reach position without the need to purchase additional cores.
The shear pin can be replaced without disassembly of the pulling tool.
