16 Inch Hydraulic Wireline Stuffing Box Well Intervention

16 Inch Hydraulic Wireline Stuffing Box Well Intervention

  • 16 Inch Hydraulic Wireline Stuffing Box Well Intervention
  • 16 Inch Hydraulic Wireline Stuffing Box Well Intervention
16 Inch Hydraulic Wireline Stuffing Box Well Intervention
Product Details:
Place of Origin: China Baoji
Brand Name: Ruixin
Certification: API
Model Number: 12inch 14inch 16inch 20inch
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 2-3 weeks
Payment Terms: T/T
Supply Ability: 1 set 2 weeks
Contact Now
Detailed Product Description
Name: 16inch Hydraulic Stuffing Box Wireline Pressure Control Size: 14inch 16inch 20inch
Materal: Steel Use: Well Intervention
Control Method: Manual & Hydraulic Work Pressure: 3k 5k 10k 15k
High Light:

Hydraulic Wireline Stuffing Box

,

16 Inch Wireline Stuffing Box

,

Well Intervention Wireline Stuffing Box

Operation Manual of Hydraulic Stuffing Box

I. Introduction:

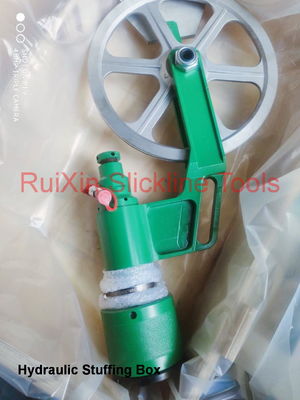

Hydraulic Stuffing Box is a surface pressure control equipment using on slickline operation to seal off the wire, and the

sealing of the wire according the rubber seal packing. The BOP plunger of the blowout system is used for the sealing

of the downhole pressure after the wire break.The seal packing are both available with manual and hydraulic control

methods.The stuffing box consist of Sheave staff, body and control hydraulic cylinder.

II. Parameters :

1.Model:FH16-35-Y

2.WP:5000PSI;

3.For Max Wireline:0.108″,0.125″;

4.Sheave OD:16″(406.4mm);

5.Control Type :Manual & Hydraulic;

6.Connection:4-3/4-4ACME·B type Quick Union;

7.Safe Load:25KN

III. remarks:

1.We need change the seal packing and BOP plunger after using.

2.If the bearing is lock or abnormality, we need to check and replace a new one.

3.It should be with the thread protector if not use.

16 Inch Hydraulic Wireline Stuffing Box Well Intervention 0

The stuffing box consist of Sheave staff, body and control hydraulic cylinder.

WP.3000psi ,5000psi.10000psi,15000psi.
Sheave Dia. Work Pressure Wire Size Control Method
14" 5000PSI~15000 PSI 0.108" Manual & Hydraulic
16" 5000PSI~15000 PSI 0.125" Manual & Hydraulic
20" 5000PSI~15000 PSI 0.16" Manual & Hydraulic



Welcome to contact us at any time.

16 Inch Hydraulic Wireline Stuffing Box Well Intervention 1
