Innovation Excellence
 |
| Place of Origin: | China BaoJi |
| Brand Name: | RuiXin |
| Certification: | API |
| Model Number: | 1.5inch |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Wooden Box |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1 set 2weeks |
| NAME: | Wireline Knuckle Joint 1.5inch PCE Wireline Tool String H2S Service Wireline | Material: | 17-4 PH |
|---|---|---|---|
| SIZE: | 1.25inch～2.5inch | FISH NECK: | 1.187inch～2.313inch |
| CONNECTION: | 15/16UN～1-9/16UN | ADVANTAGE: | Used To Provide FlexibilitUsed To Provide Flexibiy Within The Wireline Tool String And Durability |
| OPERATION: | Wireline Operation And Slickline Operation | ||
| High Light: | 1.5inch Wireline Tool String,PCE Wireline Tool String,H2S Wireline Tool String |
||

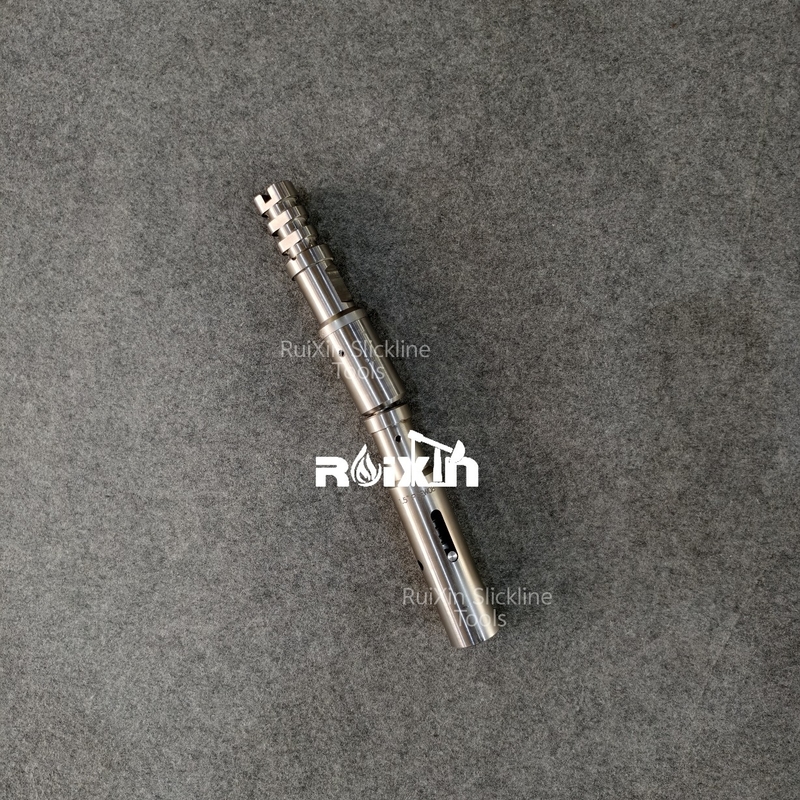

Wireline Knuckle Joint 1.5inch PCE Wireline Tool String H2S Service Wireline
I.Overview:
The Wireline Knuckle Joint is a ball-shaped design that can achieve the Angle deflection between the jar and the pulling tool to facilitate the adjustment of the tool string and the tilt direction of the tubing, especially in the curved tubing and the wire operation in the directional well, the universal joint is essential.
2 Wireline Knuckle Joint are used to increase tool string flexibility and are also effective in inclined Wells. Whenever the stem and jar are out of alignment or do not move freely, it is impossible to operate the tool. However, this can be avoided by adding joint joints to the string. The steering knuckle is immediately below the mechanical jar. For added flexibility, a knuckle joint can be added between the stem and the jar. A knuckle joint is a wireline tool attachment used to provide bending to a string of tools. Because the weight bar and jar cannot adjust the bend, the Wireline Knuckle joint can ensure the normal operation of the wire.
3, The Wireline Knuckle Joint is a wireline tool accessory, used to provide bending to the tool string. Because the weight bar and jar cannot adjust the bend, the Wireline Knuckle Joint can ensure the normal operation of the wire.
II,Note
1. The Wireline Knuckle joint is usually connected under the jar.
2. When the Wireline Knuckle Joint is not used as a steering tool, it must be connected above the steering tool.
| Size | Fishing neck | Connection |
| 1.25＂ | 1.187＂ | 15/16UN |
| 1.5＂ | 1.375＂ | 15/16UN |
| 1.875＂ | 1.75＂ | 1-1/16UN |
| 2.125＂ | 1.75＂ | 1-1/16UN |
| 2.5＂ | 2.313＂ | 1-1/16UN |
| 2.5＂ | 2.313＂ | 1-9/16UN |
◆About Baoji RuiXin Slickline Tools
Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.
◆Strict quality control system
Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.
◆Hard work, after-sales service
On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.
Welcome to contact us at any time.
