Wireline Spring Jar Wireline Tool String

Wireline Spring Jar Wireline Tool String

  • Wireline Spring Jar Wireline Tool String
  • Wireline Spring Jar Wireline Tool String

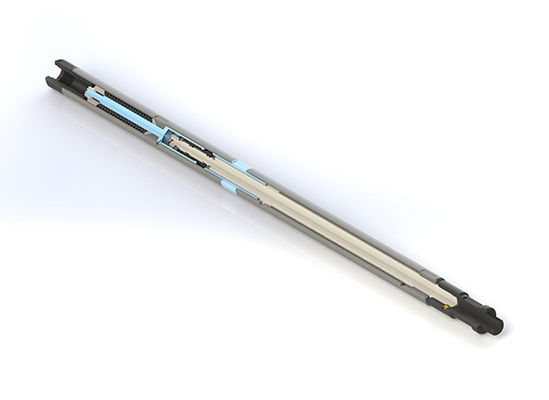

Wireline Spring Jar Wireline Tool String
Product Details:
Place of Origin: China Baoji
Brand Name: Ruixin
Certification: API Q1
Model Number: 1.5inch - 2.5inch
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1 set 3 weeks
Contact Now
Detailed Product Description
Name: Wireline Spring Jar Material: Alloy Steel
Szie: 1.5inch - 2.5inch FN: 1.375inch 1.75inch
Service: STD&H2S Function: Provide Upward Jarring During Heavy Duty Fishing

                                   Wireline Spring Jar Wireline Tool String

I. introduction (B)

A wireline spring jar is designed to provide upward jarring during heavy duty fishing operation. It can

guarantee the faultless operation with least maintenance.

Ⅱ.Structure characteristics (C)

The wireline spring jar consists of fishing neck, sleeve, jar stem, pup joint, locking piece, slip, spring,

extension rod, spacer, connecting sleeve, pressing sleeve, adjusting screw, lower sub, disc spring, etc..

When the jar is closed, the slip on the jar stem will stretch and clamp on the extension rod under the

function of spring. When lifting, the jar stem will drive the slip to pull the extension rod and squeeze the

disc spring to reserve energy. When the jar stem runs for some stroke, the slip will be squeezed by the

pup joint and disconnect with the extension rod. Then the energy of disc spring will release immediately

to finish the jarring effect.

III. General Technical Parameters (A)

Size Fishing neck Connection PN.
1.5" 1.375" 15/16UN W05-03.03.00
1.75" 1.375" 15/16UN W05-03.02.00
1.875" 1.75" 1-1/16UN W05-03.05.00
2.125" 1.75" 1-1/16UN W05-03.08.00
2.5" 2.313" 1-9/16UN W05-03.09.00

Note: More customized parts are available upon request.
