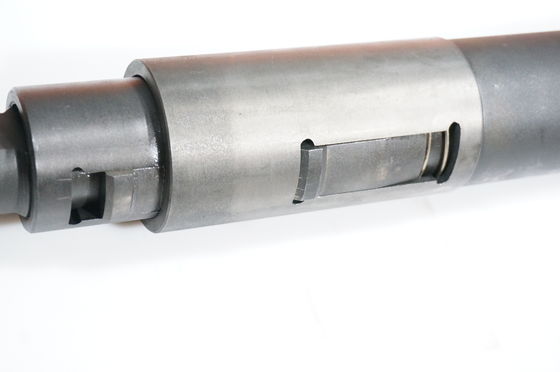

Custom Slickline Wireline Running Tool X Running Tool

Custom Slickline Wireline Running Tool X Running Tool

Introduction

An X running tool is a special tool used to run and set X/XN type lock mandrel. It can set the type X/XN lock mandrel into X/XN landing nipple selectively.

General Technical Parameters

Structure Characteristics

The X running tool consists of fishing neck, inner sleeve, stop pin, main spring, spring housing, dog spring, split ring, locator dog, dog housing, crescent slide, retainer dog and mandrel. Enclosed is the assembly drawing.

Before operation, the retainer dog catches the inner fishing neck of lock mandrel, and then connect the lock mandrel to the mandrel by shear pin. Make the crescent slide stuck into the groove of mandrel to prevent movement.

The locator dog will retreat to the groove of inner sleeve when the X running tool is entering the landing nipple. After passing through the landing nipple, the locator dog will expand automatically with the action of the dog spring.

After passing through the desired landing nipple, pull the toolstring upwards. The locator dog makes the dog housing move down to have the locator dog stuck into the groove of the inner sleeve. At this moment, the crescent slide will release the mandrel and the lock mandrel key will flick and locate into the keyways of landing nipple.Jar downwards to shear off the shear pin of X running tool. Then jar upwards to shear off the shear pin of lock mandrel. Remove from wellbore.

If type XN landing nipple is below several type X landing nipple, it is ok to run under the selective model to save the top shear pin when the packing is running through the seal segment of landing nipple during jarring. Move to the non-selective model when it is running in the last type X landing nipple above the type XN landing nipple.
