Alloy Steel 2 Inch Tubing Broach Gauge Cutter Slickline

Alloy Steel 2 Inch Tubing Broach Gauge Cutter Slickline

  • Alloy Steel 2 Inch Tubing Broach Gauge Cutter Slickline
  • Alloy Steel 2 Inch Tubing Broach Gauge Cutter Slickline
Alloy Steel 2 Inch Tubing Broach Gauge Cutter Slickline
Product Details:
Place of Origin: China Baoji
Brand Name: Ruixin
Certification: API Q1
Model Number: 1.25inch~5inch
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 1-2 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1 set 2 week
Contact Now
Detailed Product Description
Name: Wireline Tubing Broach Gauge Cutter Wireline Size: 1.25inch~5inch
Fish Neck: 1.187inch 1.375inch 1.75inch 2.313inch Connection: SR,QLS,BLQJ,HDQRJ
Material: Alloy Steel&Nickel Alloy Use: Wireline &Slickline
Advantage: Broach Out Restrictions Of Whatever Nature In The Wellbore.
High Light:

Gauge Cutter Slickline


1.25 Inch Tubing Broach


Slickline Gauge Cutter

Alloy Steel 2 Inch Tubing Broach Gauge Cutter Slickline


Wireline Tubing Broach Gauge Cutter Wireline

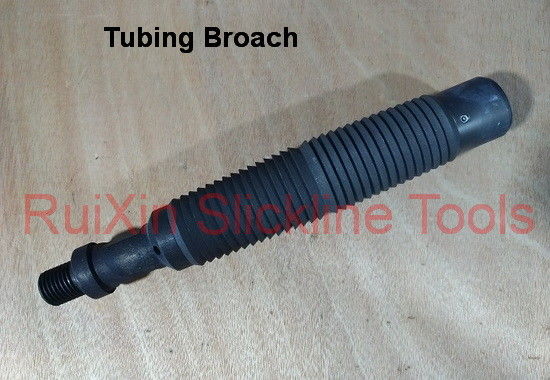

I. Introduction

A wireline tubing broach is a hardened tempered cutting tool ued to broach out restrictions of whatever nature in the wellbore.

II. General Technical Parameters

OD Fishing neck Connection PN
1.25"-1.5" 1.187" 15/16-10UN W21-03.**.00
1.5"-2" 1.375" 15/16-10UN W21-03.**.00
2"-2.5" 1.375" 15/16-10UN W21-03.**.00
2.5"-3" 1.75" 1-1/16-10UN W21-03.**.00
3"-4" 1.75" 1-1/16-10UN W21-03.**.00
4"-5" 2.313" 1-9/16-10UN W21-03.**.00

Note:More customized parts are available upon request.

III. Structural features

The tubing broach is composed of the body, scraper and pressing cap, in which, the pressing cap and body are supported with nail after being connected.
There are some gas vents on the body to discharge gas or liquid so as to prevent any end from shutting off pressure to cause difficult use or accidents.

The scraper is tapered whose both ends are small and middle is large. The hardness of blade reaches 47~52HRC after full quenching and tempering. The scraper can jar downward and upward.

Welcome to contact us at any time.

Alloy Steel 2 Inch Tubing Broach Gauge Cutter Slickline 0

About Baoji RuiXin Slickline Tools

Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.

Strict quality control system

Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.

Hard work, after-sales service

On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.
