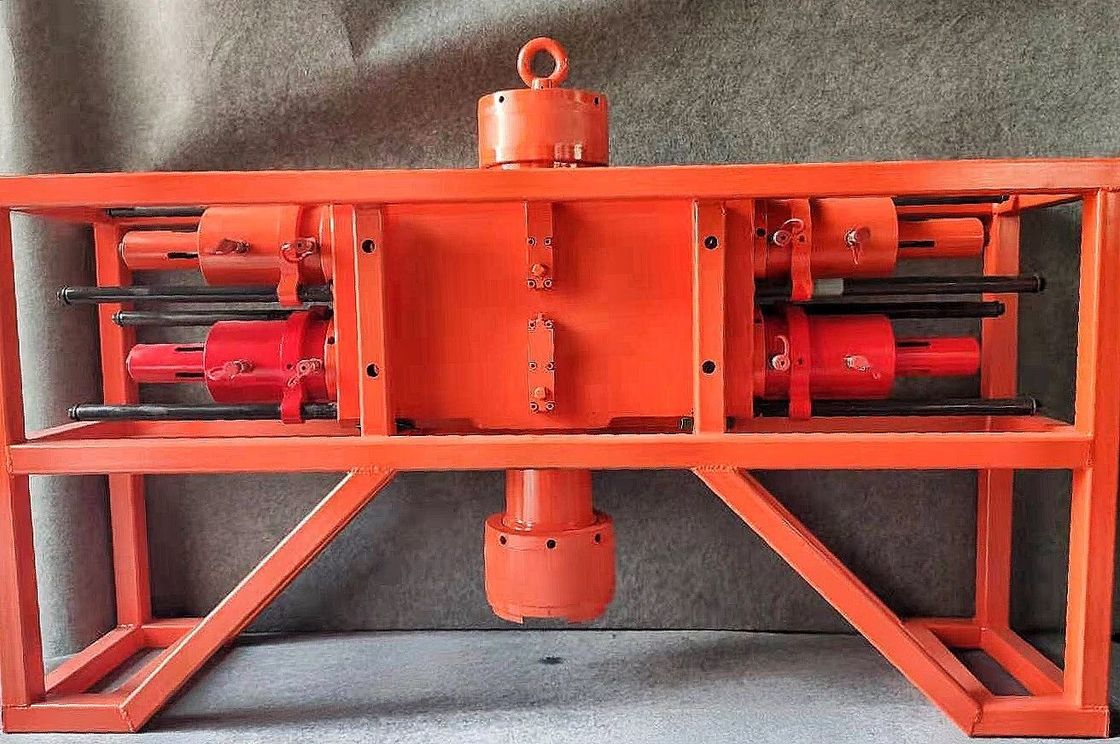

Wireline Hydraulic Duoble Ram BOP Blowout Preventer Wireline Pressure Control

Wireline Hydraulic Duoble Ram BOP Blowout Preventer Wireline Pressure Control

  • Wireline Hydraulic Duoble Ram BOP Blowout Preventer  Wireline Pressure Control
  • Wireline Hydraulic Duoble Ram BOP Blowout Preventer  Wireline Pressure Control
Wireline Hydraulic Duoble Ram BOP Blowout Preventer  Wireline Pressure Control
Product Details:
Place of Origin: China Baoji
Brand Name: Ruixin
Certification: API
Model Number: 2.5inch ID 3inch ID 4.06inch ID 5-1/8inch ID
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 2500~
Packaging Details: Wooden Box
Delivery Time: 4-8weeks
Payment Terms: T/T
Supply Ability: 1 set 3 weeks
Contact Now
Detailed Product Description
Material: Alloy Steel Type: Hydraulic&Manual
ID: 2"~7" Use: Wireline &Slickline
Work Pressure: 3k 5k 10k 15k Service: Standard&H2S
Name: Wireline Hydraulic Dual Ram BOP Blowout Preventer Wireline Pressure Control

   Wireline Hydraulic Duoble Ram BOP Blowout Preventer Wireline Pressure Control

Wireline Pressure Control Wireline Hydraulic Duoble Ram BOP features two sets

of Ram assemblies and hydraulic actuated system that allow fast,safe and easy operation

in a remote location. Dual Hydraulic Type 1 is suitable for slickline and braided line operation

by changing its respective rams.

Wireline Valve, also known as Blow Out Preventer(BOP), is used as a safet quipment which

is commonly located between Lubricator and Wellhead/ Christmas Tree. The design incorporates

Ram bodies with inner seals that allow pressure to be contained within the well once the bodies

are closed. This allow the pressure above to be bled off while the wire or cable is still intact thereby

enable repairing and other work to be carried out on equipment above, The design also features

equalising Valves that are fitted to the main body to allow ecualisation o ubricator and well pressure

when the operation is to be resumed

Dual Integral Hydrauic Wireline Valve incorporates an integral top quick union connection to the

main body. The hydraulic operation features two sets of Ram assemblies and hydraul c actuated

system that allow fast, safe and easy operation a remote location. This design is suitahle for

slickline and braided line operation Shear Ram design available on request

Model Work Pressure Bore Wireline / Slickline OD. Control Method Remarks
FZ6.3-35 35MPa 2.5" 0.125" Manual/ Hydraulic

Single

Ram

2FZ6.3-35 35MPa 2.5" 7/32" Hydraulic Double Ram
FZ7.6-35 35MPa 3" 0.125" Manual/ Hydraulic Single Ram
2FZ7.6-35 35MPa 3" 7/32" Hydraulic Double Ram
FZ10.2-35 35MPa 4" 0.125" Manual/ Hydraulic Single Ram
2FZ10.2-35 35MPa 4" 7/32" Hydraulic Double Ram
FZ6.3-70 70MPa 2.5" 0.125" Hydraulic Single Ram
2FZ6.3-70 70MPa 2.5" 7/32" Hydraulic Double Ram
FZ7.6-70 70MPa 3" 0.125" Hydraulic Single Ram
2FZ7.6-70 70MPa 3" 7/32" Hydraulic Double Ram
FZ10.2-70 70MPa 4" 0.125" Hydraulic Single Ram
2FZ10.2-70 70MPa 4" 7/32" Hydraulic Double Ram
FZ6.3-105 105MPa 2.5" 0.125" Hydraulic Single Ram
2FZ6.3-105 105MPa 2.5" 7/32" Hydraulic Double Ram
FZ7.6-105 105MPa 3" 0.125" Hydraulic Single Ram
2FZ7.6-105 105MPa 3" 7/32" Hydraulic Double Ram
FZ10.2-105 105MPa 4" 0.125" Hydraulic Single Ram
2FZ10.2-105 105MPa 4" 7/32" Hydraulic Double Ram



Welcome to contact us at any time.
