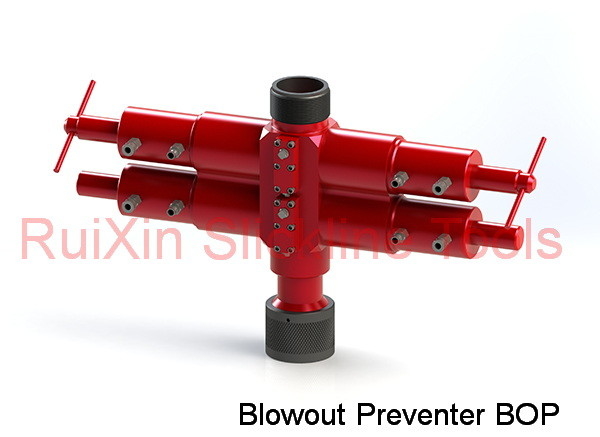

Double Ram BOP Slickline 5000psi Wireline Pressure Control Blowout Preventer

Double Ram BOP Slickline 5000psi Wireline Pressure Control Blowout Preventer

  • Double Ram BOP Slickline 5000psi Wireline Pressure Control Blowout Preventer
Double Ram BOP Slickline 5000psi Wireline Pressure Control Blowout Preventer
Product Details:
Place of Origin: China Baoji
Brand Name: Ruixin
Certification: API
Model Number: 2.5inch ID 3inch ID 4.06inch ID 5-1/8inch ID
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1 set 3 weeks
Contact Now
Detailed Product Description
Name: Duoble Ram BOP 5000psi Wireline Pressure Control Size: 2.5inch ,3inch ,4inch ,4.5inch
Type: Manual Work Pressure: 3k 5k 10k 15k
Material: Alloy Steel&Nickel Alloy Service: STD&H2S
High Light:

5000 psi Wireline Pressure Control

,

Double Ram Bop BOP

,

BOP Slickline

Double Ram BOP Slickline 5000psi Wireline Pressure Control Blowout Preventer



I. Introduction

The BOP (Blowout Preventer) is connected with the top of either wellhead adapter or Christmas tree. Annular space around wireline or slickline will be sealed by closing lubricator valve when the wireline or slickline is still in the hole. Then the pressure in the well will be sealed to prevent blowout. Single ram BOP is usually used for wireline and double ram BOP is for wire stick accordingly. Three ram BOP (with shear ram) is also

available. Max. work pressure is up to 105MPa (15,000PSI). BOP for standard and H2S services are both available with manual or hydraulic control methods.



Model

Work Pressure

Bore

Wireline / Slickline OD.

Control Method

Remarks

FZ6.3-35

5000PSI

63.5mm

0.125"

Manual/ Hydraulic

Single

Ram

2FZ6.3-35

5000PSI

63.5mm

7/32"

Hydraulic

Double Ram

FZ7.6-35

5000PSI

76.2mm

0.125"

Manual/ Hydraulic

Single Ram

2FZ7.6-35

5000PSI

76.2mm

7/32"

Hydraulic

Double Ram

FZ10.2-35

5000PSI

102mm

0.125"

Manual/ Hydraulic

Single Ram

2FZ10.2-35

5000PSI

102mm

7/32"

Hydraulic

Double Ram

FZ6.3-70

10000PSI

63.5mm

0.125"

Hydraulic

Single Ram

2FZ6.3-70

10000PSI

63.5mm

7/32"

Hydraulic

Double Ram

FZ7.6-70

10000PSI

76.2mm

0.125"

Hydraulic

Single Ram

2FZ7.6-70

10000PSI

76.2mm

7/32"

Hydraulic

Double Ram

FZ10.2-70

10000PSI

102mm

0.125"

Hydraulic

Single Ram

2FZ10.2-70

10000PSI

102mm

7/32"

Hydraulic

Double Ram

FZ6.3-105

15000PSI

63.5mm

0.125"

Hydraulic

Single Ram

2FZ6.3-105

15000PSI

63.5mm

7/32"

Hydraulic

Double Ram

FZ7.6-105

15000PSI

76.2mm

0.125"

Hydraulic

Single Ram

2FZ7.6-105

15000PSI

76.2mm

7/32"

Hydraulic

Double Ram

FZ10.2-105

15000PSI

102mm

0.125"

Hydraulic

Single Ram

2FZ10.2-105

15000PSI

102mm

7/32"

Hydraulic

Double Ram



III. Structure Characteristics

The BOP consists of body, ram assembly, equalizing valve, end cap, stem, handle, O ring, etc.



IV. Operation Procedure

1. Installation

1.1 Close the wellhead valve. Clean the seal bore of wellhead adapter. Then install it.

1.2 Install the lubricator or other device in to the top of BOP.

2. Open

2.1 Open the valve plug of equalizing valve with allen wrench.

2.2 After the pressure is equalized, rotate the handle anticlockwise. Then ram will be opened.

2.3 Close the equalizing valve.

3. Close.

Rotate the handle clockwise. Then ram will be closed.



IV. Maintenance

1. Disassemble BOP after operation and clean the parts. Check the sealing-face or seal parts carefully.

Replace the worn parts in time.

2. After each disassembly, it is a must to conduct the seal test.

3. Strength test must be conducted on time.

Welcome to contact us at any time.
