| Place of Origin: | China Baoji |
| Brand Name: | Ruixin |
| Certification: | API |
| Model Number: | 1.5inch~6inch |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Wooden Box |
| Delivery Time: | 3-5 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1 set 3 weeks |
| Name: | Diamond Tubing Broach Gauge Cutter Wireline | Szie: | 1.5inch~6inch |
|---|---|---|---|
| Fish Neck: | 1.187inch 1.375inch 1.75inch 2.313inch,3.125inch | Application: | Slickline& Wireline |
| Material: | Alloy Steel&Nickel Alloy | Advantage: | The Cutting Sleeves Can Be Changed |
| High Light: | Remove Scale Diamond Tubing Broach,1.5 inch Gauge Cutter Slickline,6 inch Gauge Cutter Slickline |
||

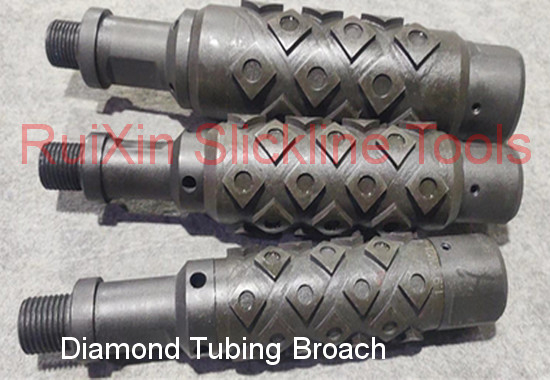

Diamond Tubing Broach Gauge Cutter Wireline
Ⅰ. Introduction
The Diamond Tubing Broach Gauge Cutter Wireline are used to remove or broach tight spots in tubing strings using hardened cutting teeth to cut or shear materials from the tubing wall.The Diamond Tubing Broach can be manufactured in mll.any configurations and sizes to meet specific wellbore conditions.The Diamond Tubing Broaches use diamond shaped teeth to remove scale, debris, or deformations from the inside of the tubing string.The Diamond Tubing Broaches can be disassembled and have the cutting sleeves changed should the teeth become damaged during operation.The Diamond Tubing broaches can be used to repair tight collars, or deformations on the inside of the tubing string in preparation for equipment such as plunger lift systems, or logging operations.
Ⅱ. Specification
| O.D | F.N | Connection | PN. |
| 1.25＂-1.5＂-1.5＂ | 1.187＂ | 15/16-10UN | W21-05.**.00 |
| 1.5＂-2＂ | 1.375＂ | 15/16-10UN | W21-05.**.00 |
| 2＂-2.5＂ | 1.375＂ | 15/16-10UN | W21-05.**.00 |
| 2.5＂-3＂ | 1.75＂ | 1-1/16-10UN | W21-05.**.00 |
| 3＂-4＂ | 1.75＂ | 1-1/16-10UN | W21-05.**.00 |
| 4＂-5＂ | 2.313＂ | 1-9/16-10UN | W21-05.**.00 |
* Tools Can Be Manufactured To Any Size Required.
