1.875 Inch Wireline Fishing Tool Downhole Wires Cutting

1.875 Inch Wireline Fishing Tool Downhole Wires Cutting

  • 1.875 Inch Wireline Fishing Tool Downhole Wires Cutting
  • 1.875 Inch Wireline Fishing Tool Downhole Wires Cutting
  • 1.875 Inch Wireline Fishing Tool Downhole Wires Cutting
1.875 Inch Wireline Fishing Tool Downhole Wires Cutting
Product Details:
Place of Origin: China Baoji
Brand Name: Ruixin
Certification: API Q1
Model Number: 1.5inch~1.875inch
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 2-3 weeks
Payment Terms: T/T
Supply Ability: 1 set 2 weeks
Contact Now
Detailed Product Description
Name: 1.875 Inch Flopetrol Cable Cutter Wireline Fishing Tool Size: 1.5inch 1.875inch
Material: Alloy Steel&Nickel Alloy OD: 1.5inch,1.875icnh
FN.: 1.375inch,1.75inch Applicable Wire: 0.092 ,0.108 ,0125inch
Function: Use This Tool To Cut The Wire Or Wire Rope From The Head Of The Rope Socket.
High Light:

Cable Cutting Wireline Fishing Tool

,

1.875 Inch Cutting Wireline Fishing Tool

,

Downhole Wires Cutting Wireline Fishing Tool

1.875 Inch Flopetrol Cable Cutter Wireline Fishing Tool



Flopetrol Cable Cutter Wireline Fishing Tool

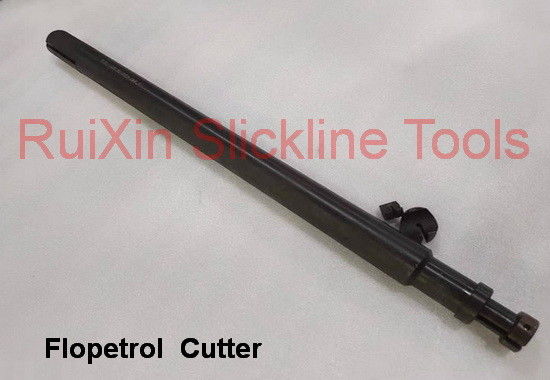

​Ⅰ. Overview:

Flopetrol Cutter, when downhole tools get stuck and cannot be recovered, Use this tool to cut the wire or wire rope from the head of the rope cap.

1.875 Inch Wireline Fishing Tool Downhole Wires Cutting 0

Ⅱ. Common specifications and technical parameters:

Size

OD

FN.

Applicable wire
1.5" 1.5"(38mm) 1.375" 0.092",0.108",0125"
1.875" 1.875"(47.6mm) 1.75" 0.092",0.108",0125"

Ⅲ. Structural characteristics

1. The knotted or deformed steel wire will not be cut off by mistake, which can reduce the risk of operation error. 2. The tool can effectively cut the underground steel wire or wire rope at a place (25mm) close to the rope cap. 3. Replacing the taper sleeve can cut off different specifications of steel wire or wire rope, up to 1/4 "(6.4mm) wire rope. 4. After cutting the steel wire or wire rope, you can bend the steel wire head, and when pulling out the steel wire, you can take it out with the tool.

1.875 Inch Wireline Fishing Tool Downhole Wires Cutting 1

Ⅳ. Matters needing attention:

1. Unscrew the cutter holder, punch out the straight sleeve, change the taper sleeve as required, and install the blade and cutter holder. Pay attention to their positional relationship. 2. After use, clean up in time and maintain carefully to prolong the service life of the tool.

Welcome to contact us at any time.

1.875 Inch Wireline Fishing Tool Downhole Wires Cutting 2



About Baoji RuiXin Slickline Tools

Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.

Strict quality control system

Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.

Hard work, after-sales service

On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.
