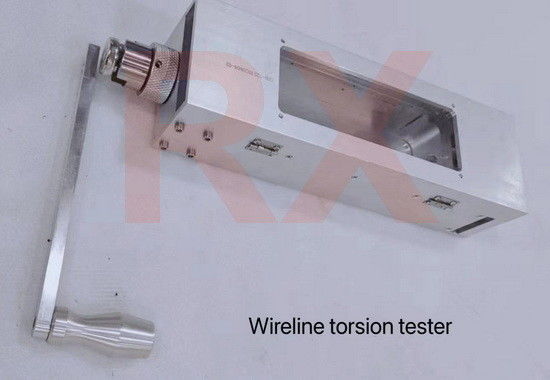

Torsion Tester Wireline Pressure Control Equipment Nickel Alloy

Torsion Tester Wireline Pressure Control Equipment Nickel Alloy

  • Torsion Tester Wireline Pressure Control Equipment Nickel Alloy
Torsion Tester Wireline Pressure Control Equipment Nickel Alloy
Product Details:
Place of Origin: China Baoji
Brand Name: Ruixin
Certification: API
Model Number: 0.092 ", 0.108 ", 0.125"
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD620
Packaging Details: Wooden Box
Delivery Time: 1-2 weeks
Payment Terms: T/T
Supply Ability: 1 set 2weeks
Contact Now
Detailed Product Description
Name: Wireline Torsion Tester Wireline Pressure Control Equipment Material: Nickel Alloy
Suitable For Wireline Diameter: 0.092 Inch, 0.108 Inch, 0.125inch Weight: 4.6Kg
Length × Width × Height (mm)s Working Hours: 452.5×112×76.5 Operating Temperature: -20℃-50℃
Function: Is Designed For The Purpose Of Testing Wireline Strength.
High Light:

Torsion Tester Wireline Equipment

,

Wireline Pressure Control Torsion Tester

,

Nickel Alloy Wireline Torsion Tester

  Wireline Torsion Tester Wireline Pressure Control Equipment

I. Overview:
The wire quality tester (Type I) is also known as the wire torsion tester. It is an instrument used for wire torsion experiments. Through the torsion test, the number of turns when the wire is broken is counted and compared with the standard number of broken turns of the wire to determine the qualitative test. Whether the well wire can continue to be used.
II. Main technical performance:
Applicable steel wire diameter: 0.092", 0.108", 0.125"
Total weight: 4.6Kg
Length × width × height (mm): 452.5 × 112 × 76.5
III. Structural features:
The steel wire quality inspector (type I) is mainly composed of a shell, an upper cover, an adjusting plate, a spring, a bearing seat, a connecting rod, and a handle. The specific structure is shown in the attached drawings.
The shell supports and connects the components; the upper cover is equipped with a window plate to observe the twisting of the steel wire; the adjustment plate is equipped with a splint and a splint seat to fix one end of the steel wire; the bearing seat is equipped with a splint, shaft and bearing for fixing And rotate the steel wire; the measuring pin is used to easily judge the steel wire specification; the spring is used to straighten the steel wire to pre-tighten; the connecting rod and the handle are used to rotate the shaft to twist the steel wire.
According to API9A standard, the minimum number of twisted and broken turns of 0.092" steel wire is about 23 turns, and the minimum number of twisted and broken turns of 0.108" steel wire is about 20 turns.
IV. Maintenance:
Grease the bearings regularly.

Welcome to contact us at any time.
