|Place of Origin:||China Baoji|
|Model Number:||2inch 1.5inch 2.25inch 2.75inch|
|Minimum Order Quantity:||1|
|Packaging Details:||Wooden Box|
|Delivery Time:||3-4 weeks|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||1 set 3 weeks|
|Name:||Alligator Grab Wireline Fishing Tool||Fish Neck:||1.375inch 1.75inch|
|Size:||2inch 1.5inch 2.25inch 2.75inch||Material:||Alloy Steel&Nickel Alloy|
|Connection:||15/16-10UN 1-1/16-10UN||Body O.D:||1.84inch 2.19inch 2.69inch 3.65inch|
|Function:||To Perforate Standard And Heavy Wall Tubing Under Pressure|
Alligator Wireline Grab,
Alloy Steel Wireline Grab,
Catch Fish Falling Wireline Grab

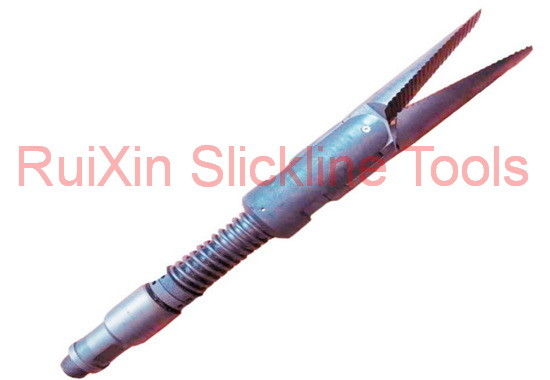

Alligator Grab Wireline Fishing Tool
An alligator clip is a tool used to catch fish falling from a tubing well. In most cases, it is used when other fishing tools cannot be used.
II.General Technical Parameters
The alligator clip is mainly composed of a fishing neck, a mandrel, an adjusting nut, a spring, a skirt sleeve, a shaft pin, a claw, a cylindrical pin, and a shear pin (or pin and auxiliary spring), etc.; see the attached drawings for the specific structure.
When the skirt is moved up and down, the paws installed on it can slide along the cylindrical pin on the spindle and rotate around the shaft pin, thereby completing the opening and closing action; the shear pin (or pin) makes the spindle and the skirt hold the claws Keep in the open position; different clamping force can be obtained by adjusting the adjusting nut to compress the spring. When the shear pin is slammed downward (or the weight release pin of the tool string is lowered), the skirt will move down under the action of the spring force, causing the claws to close quickly and clamp the falling fish in the well.
IV. How to use the product:
1. Attach the alligator clip to the basic tool string;
2. Unscrew the adjusting nut;
3. Install the shear pin (or use a thin iron rod to push it from the big end of the pin to the skirt hole to hang it);
4. Adjust the adjusting nut and compress the spring to an appropriate position;
Tools Can Be Manufactured To Any Size Required. Welcome to contact us at any time.
