Place of Origin: | China Baoji |
Brand Name: | Ruixin |
Certification: | API |
Model Number: | 1.5inch 1.875inch 2inch 2.125inch |
Minimum Order Quantity: | 1 |
---|---|
Packaging Details: | Wooden Box |
Delivery Time: | 3-4 weeks |
Payment Terms: | T/T |
Supply Ability: | 1 set 3 weeks |
Name: | Slickline Sample Bailer Sand Pump Bailer API 2 Inch | Actual O.D.: | 1.5inch-4inch |
---|---|---|---|
Fishneck O.D: | 1.375inch-2.313inch | Connections: | 15/16UN 1-1/16UN 1-9/16UN |
Length: | 24inch | Working Condition: | Standard |
Highlight: | Sand Pump Bailer Slickline,Wear Resistant Sand Bailer Slickline,2 Inch Pump Bailer Slickline |

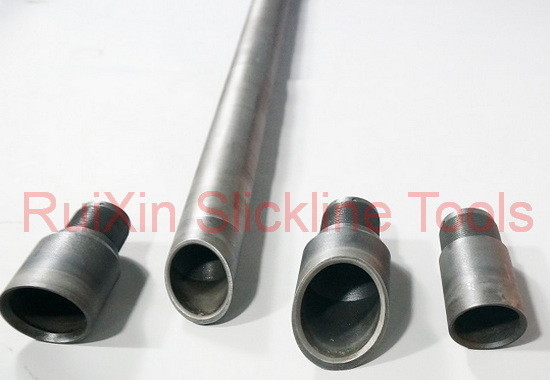

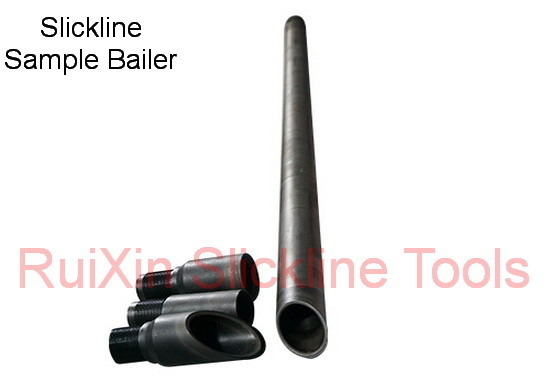

Slickline Sample Bailer Sand Pump Bailer API 2 Inch
I. Overview:
The Vell dredge is the most commonly used and effective tool for salvaging the debris in the well. The sand fishing tube is connected to the basic tool string and goes down the well.
The lower end of the Vall sand fishing tube is inclined, which is conducive to going down the well. Its working principle is to rely on the shock of the tool string and the downhole pressure to make the more viscous debris enter the sand fishing tube. Under the action of the pressure
difference, after the downhole sundries enter the cylinder and the steel ball falls, the channel is closed to prevent the sand from flowing back.
II.Common specifications and technical parameters:
Actual O.D. | Fishneck O.D | Connections | Length |
1.5" | 1.375" | 15/16UN | 24" |
1.75" | 1.375" | 15/16UN | 24" |
2.0" | 1.75" | 1-1/16UN | 24" |
2.5" | 2.313" | 1-1/16UN | 24" |
3.0" | 2.313" | 1-1/16UN | 24" |
4.0" | 2.313" | 1-9/16UN | 24" |
III. Instructions for use:
1. The tool is directly connected and used under the basic tool string.
2. After going in, hit down quickly to form a pressure difference, complete the sand fishing, and start the tool string.
IV, maintenance:
1. When using, clean up the rock and sand in time, and clean the inside of the cylinder.
2. When not in use temporarily, keep it with protective wire, and apply lubricating oil inside the cylinder to prevent rust.
Tools can be manufactured to any size required.
Wecome to contact us at any time.
