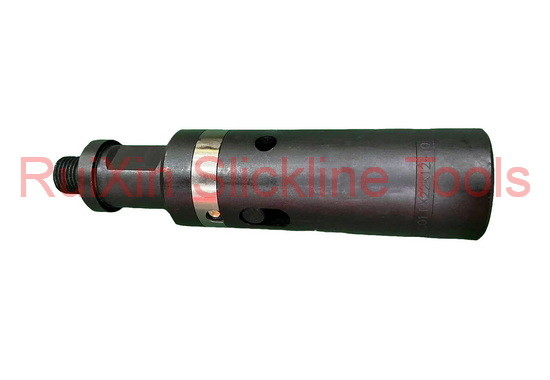

GU Shear Up Adaptor Wireline Pulling Tool 3 inch

GU Shear Up Adaptor Wireline Pulling Tool 3 inch

  • GU Shear Up Adaptor Wireline Pulling Tool 3 inch
GU Shear Up Adaptor Wireline Pulling Tool 3 inch
Product Details:
Place of Origin: China Baoji
Brand Name: Ruixin
Certification: API Q1
Model Number: 2inch 2.5inch 3inch 3.5inch
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 2-3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1 set 2 weeks
Contact Now
Detailed Product Description
Name: GU Shear Up Adaptor Wireline Pulling Tool 3 Inch Size: 2inch 2.5inch 3inch 3.5inch 4inch 5inch
Fish Neck: 1.375inch 1.75inch 2.313inch 3.125inch Material: Alloy Steel&Nickel Alloy
Actual OD: 1.81inch~ Fishing OD: 1.375inch~2.61inch
Connection: SR,QLS,BLQJ,HDQRJ Working Condition: Standard

                                                         GU Shear Up Adaptor Wireline Pulling Tool 3 inch

Ⅰ. Introduction

GU Shear Up Adaptor is used in connection with GS pulling tool, and they form GR Pulling Tool.

Ⅱ. Technical parameters of common specifications

Szie Actual OD FN Fishing OD Connection
1.5″ 1.187 1.375″ 1.38″ 15/16″-10UN
2″ 1.81″ 1.375″ 1.38″ 15/16″-10UN
2.5″ 2.25″ 1.375″ 1.81″ 15/16″-10UN
3″ 2.72″ 1.75″ 2.31″ 1-1/16″-10UN
3.5″ 3.11″ 2.313″ 2.62″ 1-1/16″-10UN

Technical parameters can also be according to user requirements

III. Structural characteristics:

GU pulling tool is mainly composed of GS pulling tool  and GU Shear Up Adaptor  as shown in the attached assembly drawing. During fishing operation (refer to GS assembly drawing), when the fishing claw  touches the mouth end of the inner fishing neck, it will retreat and fall into the slightly smaller diameter of the core and be retracted; When the fishing claw  completely enters the inner fish neck, the fishing claw  is immediately opened to catch it under the thrust of the compression auxiliary spring . If the tool is blocked upwards, it can be shaken off.

IV. Maintenance

1. After the tool is disassembled, check the damage of each component and replace the damaged parts.

2. When assembling, apply a thin layer of grease on the thread surface.

3. After assembly, the fishing neck is attached with thread protector and marked for later use.

Welcome to contact us at any time.

GU Shear Up Adaptor Wireline Pulling Tool 3 inch 0
