Place of Origin: | China Baoji |
Brand Name: | Ruixin |
Certification: | API |
Model Number: | 10inch 14inch 16inch 20inch |
Minimum Order Quantity: | 1 |
---|---|
Packaging Details: | Wooden Box |
Delivery Time: | 3-4 weeks |
Payment Terms: | T/T |
Supply Ability: | 1 set 3 weeks |
Name: | 20 Inch Hydraulic Stuffing Box Wireline Pressure Control | Size: | 10inch 14inch 16inch 20inch |
---|---|---|---|
Materal: | Steel | Use: | Well Intervention |
Control Method: | Manual & Hydraulic | Work Pressure: | 3k 5k 10k 15k |
Operation: | Wireline Operation And Slickline Operation | Working Condition: | Standard |
High Light: | Well Intervention Hydraulic Wireline Stuffing Box,20 Inch Hydraulic Wireline Stuffing Box |
Operation Manual of Hydraulic Stuffing Box
I. Introduction:

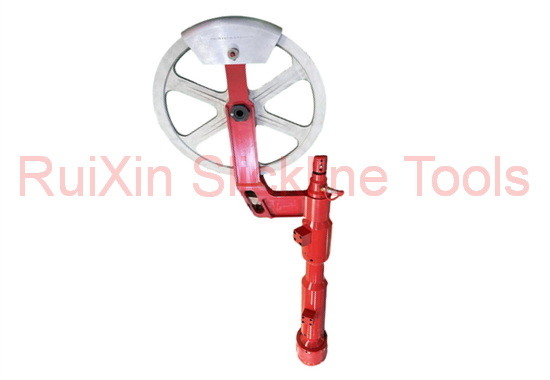

Hydraulic Stuffing Box is a surface pressure control equipment using on slickline operation to seal off the wire, and the
sealing of the wire according the rubber seal packing. The BOP plunger of the blowout system is used for the sealing
of the downhole pressure after the wire break.The seal packing are both available with manual and hydraulic control
methods.The stuffing box consist of Sheave staff, body and control hydraulic cylinder.
II. Parameters :
1.Model:FH20-35-Y
2.WP:5000PSI;
3.For Max Wireline:0.108″,0.125″;
4.Sheave OD:20″(406.4mm);
5.Control Type :Manual & Hydraulic;
6.Connection:4-3/4-4ACME·B type Quick Union;
7.Safe Load:25KN
III. remarks:
1.We need change the seal packing and BOP plunger after using.
2.If the bearing is lock or abnormality, we need to check and replace a new one.
3.It should be with the thread protector if not use.
The stuffing box consist of Sheave staff, body and control hydraulic cylinder.
Sheave Dia. | Work Pressure | Wire Size | Control Method |
14" | 5000PSI~15000 PSI | 0.108" | Manual & Hydraulic |
16" | 5000PSI~15000 PSI | 0.125" | Manual & Hydraulic |
20" | 5000PSI~15000 PSI | 0.16" | Manual & Hydraulic |
