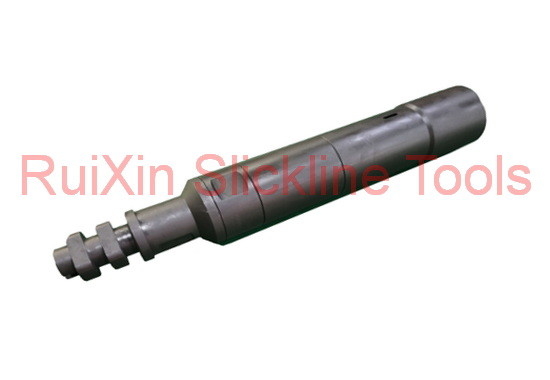

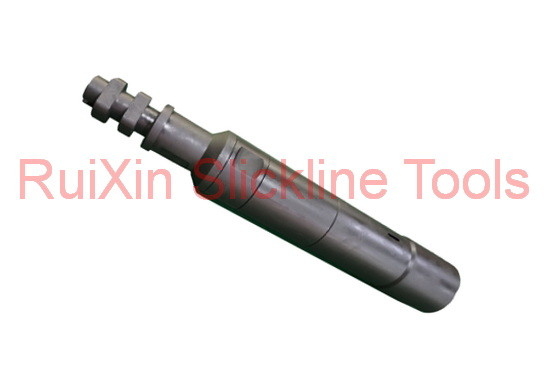

Heavy Duty Pulling Tool Wireline Pulling Tool 3.5 inch

Heavy Duty Pulling Tool Wireline Pulling Tool 3.5 inch

  • Heavy Duty Pulling Tool Wireline Pulling Tool 3.5 inch
  • Heavy Duty Pulling Tool Wireline Pulling Tool 3.5 inch
Heavy Duty Pulling Tool Wireline Pulling Tool 3.5 inch
Product Details:
Place of Origin: China Baoji
Brand Name: Ruixin
Certification: API
Model Number: 1.5inch-4inch
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 3-4 weeks
Payment Terms: T/T
Supply Ability: 1 set 3 weeks
Contact Now
Detailed Product Description
Name: Heavy Duty Pulling Tool Wireline Pulling Tool 3.5 Inch Size: 1.5 Inch-4 Inch
Actual Outer Diameter: 1.5 Inch-3.8 Inch Fishing Neck: 1.375 Inch-2.313 Inch
Connecting Thread: 1-1/16UN 15/16UN Diameter: 1.375 Inch-3.125 Inch

Heavy Duty Pulling Tool Wireline Pulling Tool 3.5 inch


Heavy casting and fishing tool is a casting and fishing tool used to catch tools or instruments with external necks (such as balance rods, plugs, throttles, etc.). It can be jolted upward.

II.Common specifications and technical parameters

Specifications Actual outside diameter Salvage diameter connection thread PN
1.5" 1.875" 1.375" 15/16UN W*0-*0.*0.00
2" 2.125" 1.375" 15/16UN W*0-*0.*0.00
2.5" 2.5" 1.75" 1-1/16UN W*0-*0.*0.00
3" 3.05" 1.75" 1-1/16UN W*0-*0.*0.00
4" 3.8" 2.313" 1-1/16UN W*0-*0.*0.00

Tools Can Be Manufactured To Any Size Required.
III.Use method:

1. Sinking and fishing:

1.1 Connect the tool under the basic tool string and run the well;

1.2 After descending to the predetermined position, grab the fish and shake it downward;

1.3 Lift the tool string out;

1.4 When the falling fish cannot get out by the card, the tool can be lifted up after shaking the hand.


1. Before going down the well, it should be understood whether there is sufficient space in the inner diameter of the pipe string for the release of the fishing claw in the well; If necessary, the path can be cleared first;

2. Select the appropriate grip according to the different dropping and fishing tools.

Welcome to contact us at any time.
Heavy Duty Pulling Tool Wireline Pulling Tool 3.5 inch 0
