| Name: | Wireline Tee Joint Wireline Pressure Control Equipment | Material: | Alloy Steel&Nickel Alloy |
|---|---|---|---|
| Coonection Type: | O&B | ID: | 2"~7" |
| Function: | Be Used To Connect The Wellhead Manifold To Provide A Path For Large Flow | Work Pressure: | 3k 5k 10k 15k |
| Service: | Standard&H2S | ||
| High Light: | 2" Wireline Tee Joint,10K Wireline Tee Joint,Alloy Steel Wireline Tee Joint |
||

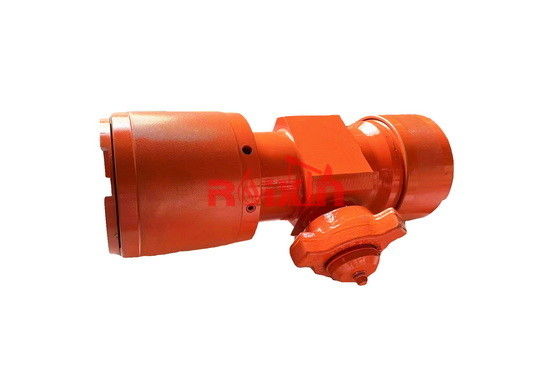

10K Wireline Tee joint Wireline Pressure Control Equipment
Ⅰ. Introduction
The Wireline Tee joint is attached below the BOP,The Wireline Pumping tee connection thread is used to connect the wellhead manifold to provide a path for large flow. NPT thread hole on the other side of the tee body is a pressure release valve . After installing the pressure
release valve, it can be used for pressure relief to ensure safe operation.
II. General Technical Parameters
|
Bore |
Work Pressure |
Service |
Connection |
PN |
|
2.5＂ |
5K 10K |
Std H2S |
5＂-4ACME |
S0*-0*.0*.00 |
|
3＂ |
5K |
H2S |
5＂-4ACME |
S0*-0*.0*.00 |
|
3＂ |
10K |
Std |
5＂-4ACME |
S0*-0*.0*.00 |
|
3＂ |
10K |
Std H2S |
5-3/4＂-4ACME |
S0*-0*.0*.00 |
|
2.5＂ |
15K |
H2S |
5-3/4＂-4ACME |
S0*-0*.0*.00 |
|
4＂ |
5K 10K |
Std |
6-1/2＂-4ACME |
S0*-0*.0*.00 |
|
3＂ |
15K |
Std H2S |
7-1/2＂-4ACME |
S0*-0*.0*.00 |
|
5＂ |
5K |
Std H2S |
8-1/4＂-4ACME |
S0*-0*.0*.00 |
|
4＂ |
10K |
Std H2S |
8-3/8＂-4ACME |
S0*-0*.0*.00 |
|
5＂ |
5K 10K |
Std H2S |
9＂-4ACME |
S0*-0*.0*.00 |
|
4＂ |
15K |
Std H2S |
9-1/2＂-4ACME |
S0*-0*.0*.00 |
|
6.38＂ |
10K |
Std H2S |
11-1/2＂-4ACME |
S0*-0*.0*.00 |
Ⅲ. Pressure Testing:
1. Install the pressure test connector and connect the pressure test line；
2. Start the pressure test pump to carry out the pressure test. Refer to the specific specifications and drawings for the test pressure and time. Fill in the test record card.
Ⅳ. Daily Maintenance
1．After use, the O-ring and seal should be replaced；
2．When not in use, should take the protector and brush the thread with anti-rust oil for storage.
Welcome to contact us at any time.
Contact Person: Selina Qiang
Tel: 86 13571793445
