Innovation Excellence
 |
| Place of Origin: | China Baoji |
| Brand Name: | Ruixin |
| Certification: | API |
| Model Number: | 2.5inch ID 3inch ID 4inch ID |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Wooden Box |
| Delivery Time: | 4-5 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1 set 4 weeks |

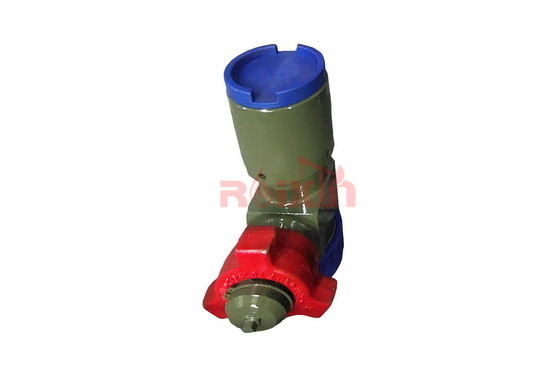

| Name: | Wireline Pumping Tee Wireline Pressure Control Equipment | Work Pressure: | 5k 10k 15k |
|---|---|---|---|
| Coonection Type: | O&B | Function: | Be Used To Connect The Wellhead Manifold To Provide A Path For Large Flow |
| Material: | Alloy Steel&Nickel Alloy | Service: | Standard&H2S |
| Highlight: | BOP Pressure Control Pumping Tee,Pumping Tee 5000psi,Alloy Steel Wireline Pumping Tee |
||
Ⅰ.Introduction
The Wireline Pumping tee is attached below the BOP,The Wireline Pumping tee connection thread is used to connect the wellhead manifold to provide a path for large flow. NPT thread hole on the other side of the tee body is a pressure release valve . After installing the pressure release valve, it can be used for pressure relief to ensure safe operation.
II. General Technical Parameters
| Bore | Work Pressure | Service | Connection | Seal Dia. |
| 2.5＂ | 5K 10K | Std H2S | 4-3/4＂-4ACME | 3.75＂ |
| 3＂ | 5K 10K | Std | 4-3/4＂-4ACME | 3.75＂ |
| 3＂ | 5K | H2S | 4-3/4＂-4ACME | 3.75＂ |
| 3＂ | 5K | Std H2S | 5-1/2＂-4ACME×2 | 4.375＂ |
| 3＂ | 10K | Std | 5-1/2＂-4ACME×2 | 4.375＂ |
| 2.5＂ | 15K | Std H2S | 6-5/16＂-4ACME | 4.375＂ |
| 3＂ | 10K | Std H2S | 6-5/16＂-4ACME | 4.375＂ |
| 3＂ | 15K | Std H2S | 7＂-5STUB ACME | 4.375＂ |
| 4＂ | 5K | H2S | 7＂-5STUB ACME | 4.375＂ |
| 4＂ | 10K | H2S | 8-1/4＂-4ACME×2 | 6.0＂ |
Ⅲ. Features
The Pump in tee is composed of a body, a nonunion plug, a nonunion nut (standard part), a slip and a nonunion nut.The body is a pressure member, and the material is 4140, Through forging, tempering treatment, mechanical properties test and ultrasonic testing, to ensure that meet the requirements of use.The nut and the slips are fixed by the top wire and play the connecting role.
Ⅳ.Pressure Testing:
1. Install the pressure test connector and connect the pressure test line；
2. Start the pressure test pump to carry out the pressure test. Refer to the specific specifications and drawings for the test pressure and time. Fill in the test record card.
Ⅴ.Daily Maintenance:
1．After use, the O-ring and seal should be replaced；
2．When not in use, should take the protector and brush the thread with anti-rust oil for storage.
Welcome to contact us at any time.
◆About Baoji RuiXin Slickline Tools
Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.
◆Strict quality control system
Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.
◆Hard work, after-sales service
On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.
