5K Alloy Steel Hydraulic Tool Trap Wireline Pressure Control Equipment

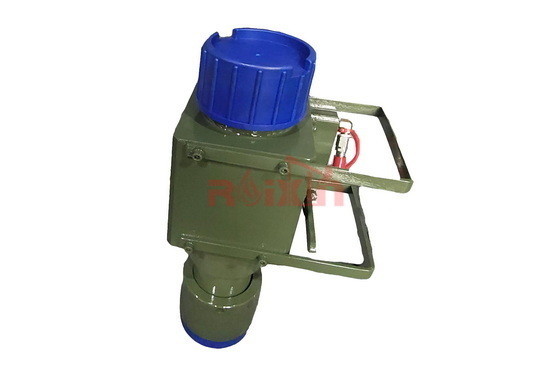

5K Hydraulic Tool Trap Wireline Pressure Control Equipment

The Hydraulic Tool Trap is a safety device designed to stop wireline tools from falling into the wellbore should the wireline accidentally break at the Rope Socket while in lubricator. This tool features hydraulic  operated flappers to provide a passage for tools to enter the well bore when in open position. The hydraulic mechanism can be easily operated by using hand pump or remotely and therefore reduce the exposure to hazardous environment.

The slot on the flapper allow wire to be run through the closed flappers after the tools has passed. The manual handle provide a clear visual indication of the position of the flappers Closed or Open Wireline Manual Tool Trap are available to suit various working pressures and manufactured to meet client  operational needs. There are two main operational types that share common features:

• External visual indication of the tools passing the flapper
• Either hydraulic open and spring return or hydraulic open and hydraulic close

The flapper that sits across the bore preventing tools from passing have a large ‘V’ slot to allow wire movement with reduced contact when the flapper is closed.
