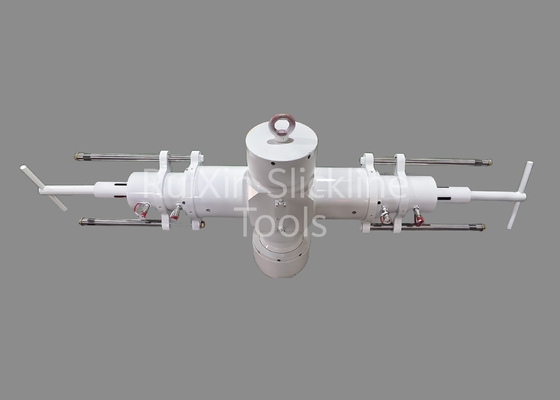

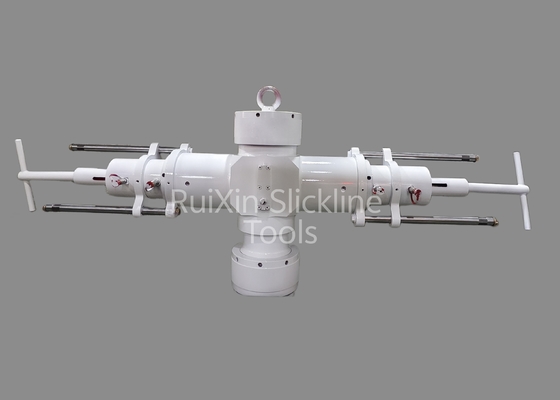

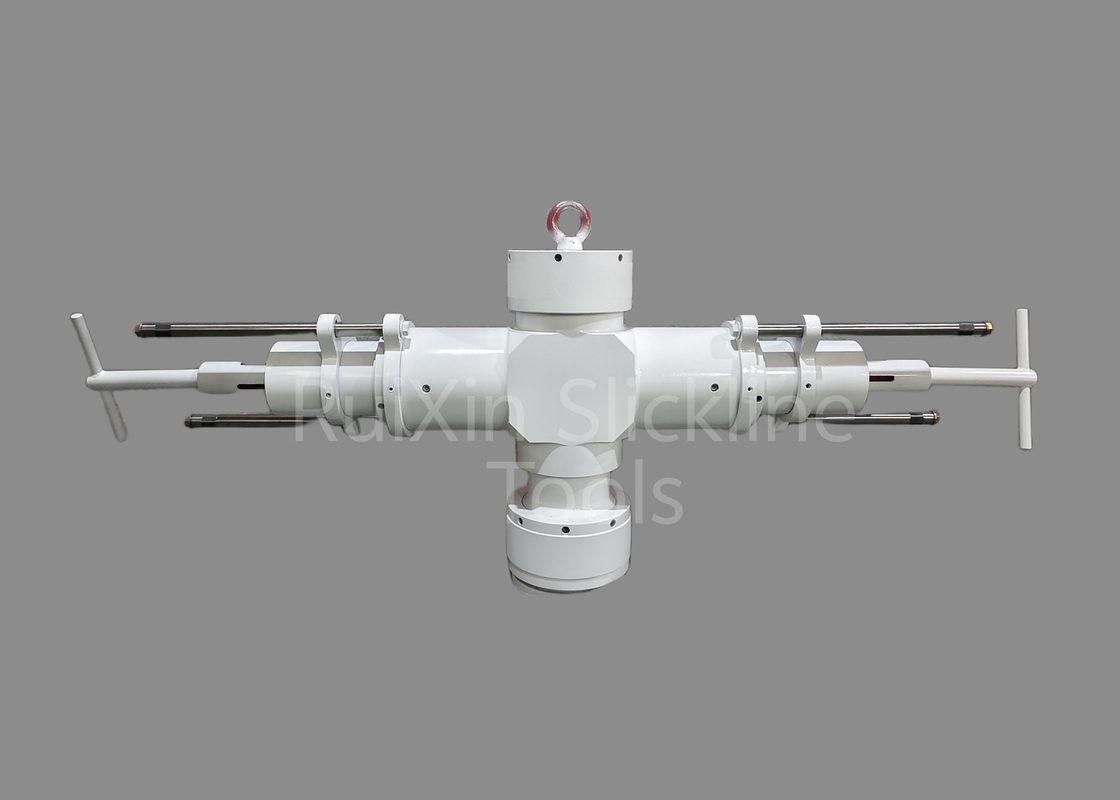

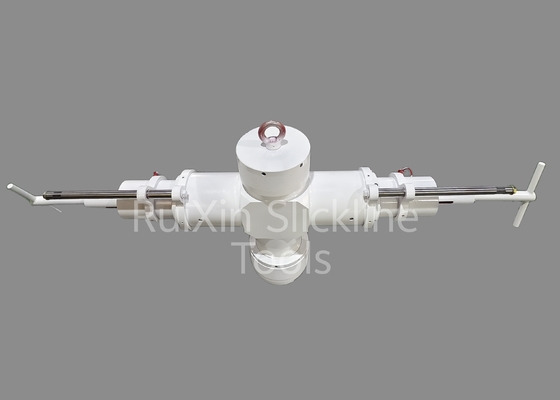

Hydraulic Control Manual Locking Wireline Bop Wireline Pressure Control Equipment

Wireline Bop Wireline Pressure Control Equipment

I. Introduction
A BOP (Blowout Preventer) is connected with the top of either wellhead adapter or Christmas tree. Annular space around wireline or slickline will be sealed by closing lubricator valve when the wireline or slickline is still in the hole. Then the pressure in the well will be sealed to prevent blowout. Single ram BOP is usually used for wireline and double ram BOP is for wire stick accordingly. Three ram BOP (with shear ram) is also available. Max. work pressure is up to 105MPa (15,000PSI). BOP for standard and H2S services are both available with manual or hydraulic control methods.

II Operation Procedure
1.Installation
1.1Close the wellhead valve. Clean the seal bore of wellhead adapter. Then install it.
1.2 Install the lubricator or other device in to the top of BOP.
2.Open
2.1Open the valve plug of equalizing valve with allen wrench.
2.2After the pressure is equalized, rotate the handle anticlockwise. Then ram will be opened.
2.3Close the equalizing valve.
3.Close.
Rotate the handle clockwise. Then ram will be closed.

 Feature, ◆Hydraulically operated actuators with manual backups
◆ Equalizing and bleed-off valves installed
◆ Quick change hydraulic couplers
◆ Recommended for high pressure or where frequent actuation
is necessary
◆Tandem, triple, and quad BOPs with IDs over 4 in. (10.2 cm) utilize locking lug hydraulic actuators with guides and rails

Any size can be customized according to customer requirements
