Cutter Bar Type Go Devil Wireline Fishing Tool 1.5inch

Cutter Bar Type Go Devil Wireline Fishing Tool 1.5inch

  • Cutter Bar Type Go Devil Wireline  Fishing Tool 1.5inch
  • Cutter Bar Type Go Devil Wireline  Fishing Tool 1.5inch
  • Cutter Bar Type Go Devil Wireline  Fishing Tool 1.5inch
  • Cutter Bar Type Go Devil Wireline  Fishing Tool 1.5inch
Cutter Bar Type Go Devil Wireline  Fishing Tool 1.5inch
Product Details:
Place of Origin: China BaoJi
Brand Name: RuiXin
Certification: API
Model Number: 1.5inch
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 2-3 weeks
Payment Terms: T/T
Supply Ability: 1 set 2weeks
Contact Now
Detailed Product Description
NAME: Cutter Bar Type Go Devil Wireline Fishing Tool 1.5inch SIZE: 1.5inch
FISH NECK: 1.375inch LENGTH: 5ft
MATERIAL: Alloy Steel&Nickel Alloy USE: Wireline &Slickline
High Light:

Cutter Bar Type Wireline Fishing Tool


1.5inch Wireline Fishing Tool

                                                              Cutter Bar Type Go Devil Wireline Fishing Tool 1.5inch
I  Overview
The Cutter Bar Type Go Devil is used to cut the stuck tool string wire. The diagonal bottom wire cutter is composed of a solid bar with a groove and a guide surface. It goes down the well in a conventional manner, and if there are no foreign objects on the cap, the bevel of the cutter will cut the wire directly on the cap. When the wire tool is severely buried by sand, debris, or wire, or is not cut at one time. You can hit it again with a flat bottom wire cutter. The wire cutter is provided with a positioning slot for a slip centralizer, which can be used in large diameter tubing.
II  Structure characteristics and use
The Cutter Bar Type Go Devil is composed of a slotted diagonal bottom solid rod and a baffle plate, and the baffle plate is connected with the slotted solid rod by screws. When in use, the baffle plate is removed, the steel wire is inserted into the slot, and then the baffle plate is installed. Wire cutters run the wire down the well and cut the wire at the cap. Then the wire cutter and tool string are fished out with the casting and fishing device.

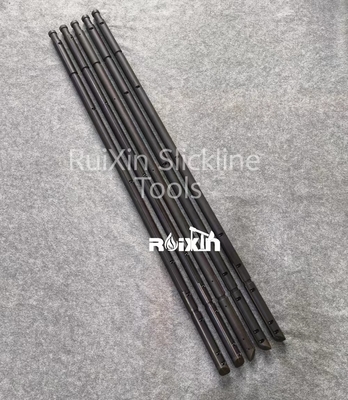

Cutter Bar Type Go Devil Wireline  Fishing Tool 1.5inch 0
III  commonly used technical parameters

SIZE FISH NECK LENGTH Applicable steel wire specification
1.5" 1.375" 2ft 0.092"~0.108"/7/32"~3/16"
1.5" 1.375" 3ft 0.092"~0.108"/7/32"~3/16"
1.5" 1.375" 5ft 0.092"~0.108"/7/32"~3/16"
1.875" 1.75" 2ft 0.092"~0.108"/7/32"~3/16"
1.875" 1.75" 3ft 0.092"~0.108"/7/32"~3/16"
1.875" 1.75" 5ft 0.092"~0.108"/7/32"~3/16"
2.125" 1.75" 2ft 0.092"~0.108"/7/32"~3/16"
2.125" 1.75" 3ft 0.092"~0.108"/7/32"~3/16"
2.125" 1.75" 5ft 0.092"~0.108"/7/32"~3/16"
2.5" 2.313" 2ft 0.092"~0.108"/7/32"~3/16"
2.5" 2.313" 3ft 0.092"~0.108"/7/32"~3/16″
2.5" 2.313" 5ft 0.092"~0.108"/7/32"~3/16"

Any size can be customized according to customer requirements
IIII  attention
1 When using the diagonal bottom wire cutter, be sure that there are no foreign objects above the rope cap. Otherwise it can't cut the wire.
2 Timely and careful maintenance to extend the service life of the tool.
