| Place of Origin: | China BaoJi |
| Brand Name: | RuiXin |
| Certification: | API |
| Model Number: | 1.25inch～6inch |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Wooden Box |
| Delivery Time: | 1-2 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1 set 1 weeks |
| NAME: | Lead Impression Block Wireline Slickline Fishing Tools 1.25inch～6inch Slickline Tools | SIZE: | 1.25inch～6inch |
|---|---|---|---|
| FISHING NECK: | 1.187inch～3.125inch | CONNECTION: | 15/16inch-10UN/ 1-1/16inch-10UN/ 1-9/16inch-10UN |
| MATERIAL: | Alloy Steel&Nickel Alloy | OPERATION: | Wireline Operation And Slickline Operation |
| Highlight: | Lead Slickline Fishing Tools,1.25inch～6inch Slickline Fishing Tools,Lead Impression Block Wireline Fishing Tools |
||

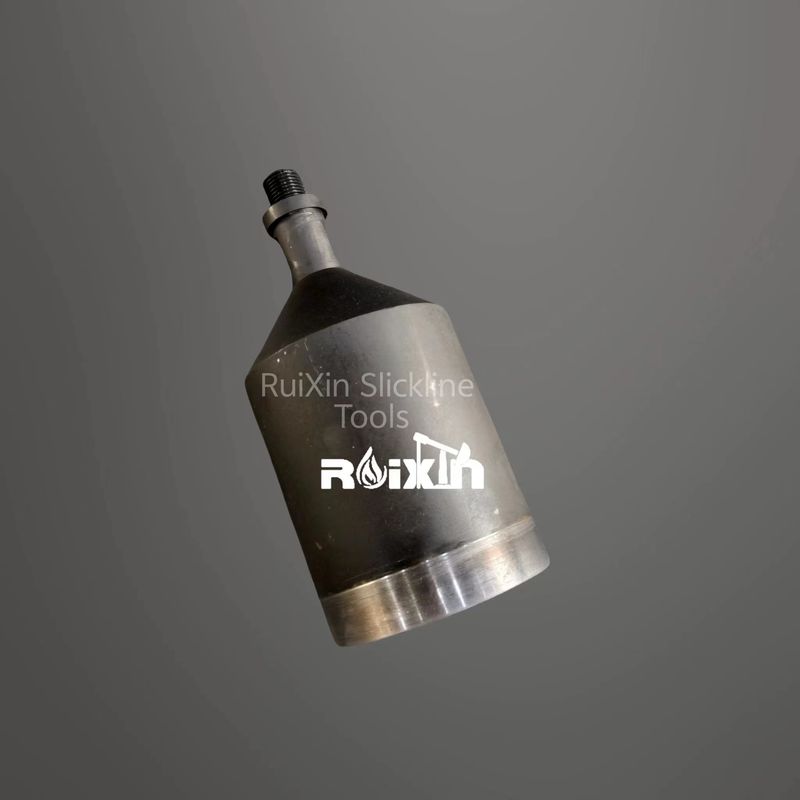

lead Impression Block Wireline Slickline Fishing Tools 1.25inch～6inch Slickline Tools
I.Overview:
The Lead Impression Block is used to print the size and shape of falling fish in the well, so as to determine the tools to be used in the next fishing operation and the measures to be taken.
II.Structure characteristics and use
1. The lead is a tool used to fill the tube with lead. When the Lead Impression Block is deformed when it hits a hard falling object in the mine, the shape and size of the falling object are recorded. After use, the traces can be cleaned, stored carefully, and recycled until the exposed lead body is used up.
2. Connect the basic tool string to run the well.
3.The geometric shape, depth, sleeve damage degree and depth of the top of the falling fish can be determined by means of hard probing the lead mold with the top of the fish or the position of the blockage, which provides a basis for the selection of fishing tools, repair tools and processes.
| Size | Fishing neck | Connection |
|
1.0"~1.5” |
1.187” |
15/16-10UN |
|
1.5”～2.0” |
1.375” |
15/16-10UN |
|
2.0"～2.5” |
1.375” |
15/16-10UN |
|
2.5"～3.0” |
1.75" |
1-1/16-10UN |
|
3.0"~4.0” |
2.313” |
1-1/16-10UN |
|
4.0"～5.0” |
2.313” |
1-1/16-10UN |
|
5.0"～6.0” |
3.125” |
. 1-9/16-10UN |
◆About Baoji RuiXin Slickline Tools
Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.
◆Strict quality control system
Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.
◆Hard work, after-sales service
On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.
