1.25inch~6.625inch Wireline Tubing Swage Slickline Tools

1.25inch~6.625inch Wireline Tubing Swage Slickline Tools

  • 1.25inch~6.625inch  Wireline Tubing Swage  Slickline Tools
  • 1.25inch~6.625inch  Wireline Tubing Swage  Slickline Tools
  • 1.25inch~6.625inch  Wireline Tubing Swage  Slickline Tools
  • 1.25inch~6.625inch  Wireline Tubing Swage  Slickline Tools
1.25inch~6.625inch  Wireline Tubing Swage  Slickline Tools
Product Details:
Place of Origin: China BaoJi
Brand Name: RuiXin
Certification: API
Model Number: 1.25inch~6.625inch
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 1-2 weeks
Payment Terms: T/T
Supply Ability: 1 set 1 weeks
Contact Now
Detailed Product Description
NAME: 1.25inch~6.625inch Wireline Tubing Swage Slickline Tools SIZE: 1.25inch~6.625inch
FISHING NECK: 1.187inch~3.125inch CONNECTION: 15/16-10UN 1-1/16-10UN 1-9/16-10UN
MATERIAL: Alloy Steel&Nickel Alloy OPERATION: Wireline Operation And Slickline Operation
High Light:

Slickline Wireline Tubing Swage


1.25inch~6.625inch Wireline Tubing Swage


Swage Slickline Tools

1.25inch~6.625inch Wireline Tubing Swage Slickline Tools


The Tubing Swage is a tool used to shape the tubing reducing area to ensure the smooth passage of downhole equipment. Sometimes it can also be used to open the orange peel type dead plug at the end of the tubing.

II.Structural features

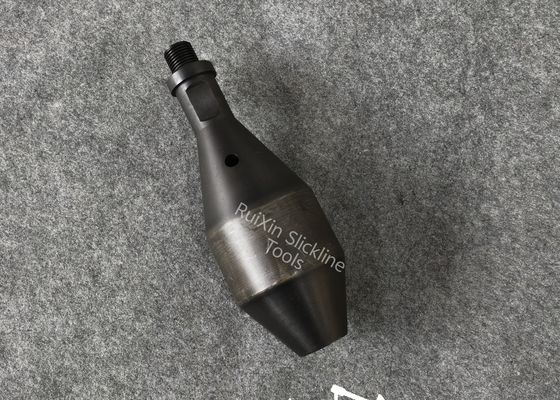

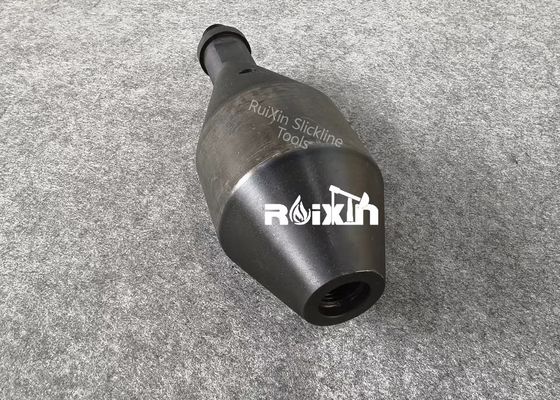

The Tubing  Swage is such a structure, the upper part of the external thread (or quick joint male end) and fishing neck; The inner diameter of the waist and the deformed tubing is roughly the same, so the middle is designed with ventilation or drainage holes, and the two ends of the waist are gradually thinner; The bottom can also be threaded to connect other tools. Tubing shaper is made of whole body alloy steel, and the parts used for shaping are quenched and tempered with a hardness of 43~45HRC.

III.Usage Connect

The tubing Swage to the lower part of the jar. When the tubing shaper goes down to the tubing reducing area and can no longer go down, the jar is used to jar downward to expand the reducing area, so as to ensure the smooth passage of the downhole device.

1.25inch~6.625inch  Wireline Tubing Swage  Slickline Tools 0

IIII.Any size can be customized according to customer requirements.

IIIII.Technical parameters

Size Fishing neck Connection
1.25inch 1.187inch 15/16-10UN
1.875inch 1.375inch 15/16-10UN
2.8inch 1.75inch 1-1/16-10UN
3.5inch 1.75inch 1-1/16-10UN
4inch 2.313inch 1-1/16-10UN
5inch 2.313inch 1-1/16-10UN
6.625inch 3.125inch 1-9/16-10UN
