Innovation Excellence
 |
| Place of Origin: | China BaoJi |
| Brand Name: | RuiXin |
| Certification: | API |
| Model Number: | 105mpa |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Wooden Box |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1 set 3 weeks |
| NAME: | 105MPa Chemical Injection Valve Injection Sub Wireline Pressure Control Equipment | CONNECTION: | 7-1/2-4ACME.B Type |
|---|---|---|---|
| Applicable Wire Size: | 0.092inch～0.125inch | RATED OPERATING PRESSURE: | 105MPA |
| STRENGTH TEST PRESSURE: | 105MPA | Work Environment: | EE |
| MATERIAL: | Alloy Steel&Nickel Alloy | OPERATION: | Wireline Operation And Slickline Operation |
| High Light: | Wireline Chemical Injection Valve,Injection Sub Wireline Pressure Control Equipment,Pressure Control Chemical Injection Valve |
||

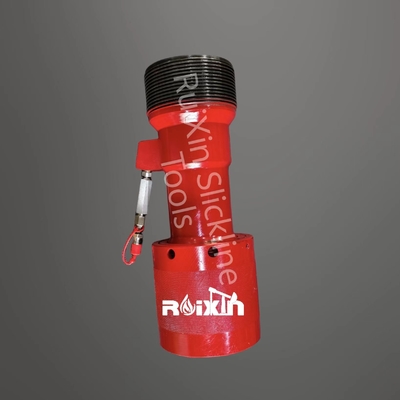

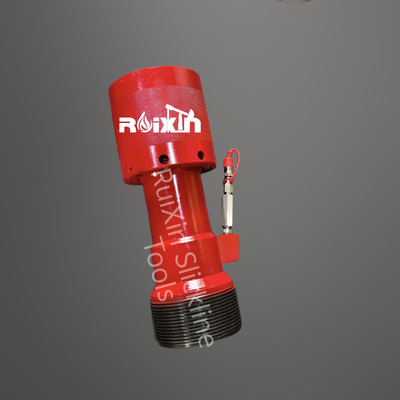

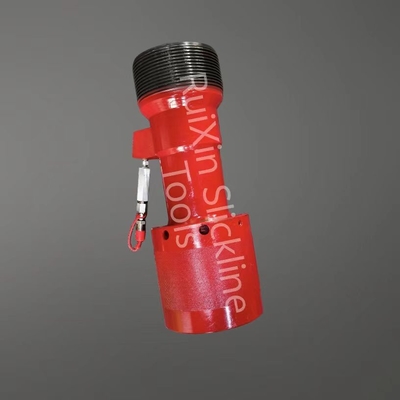

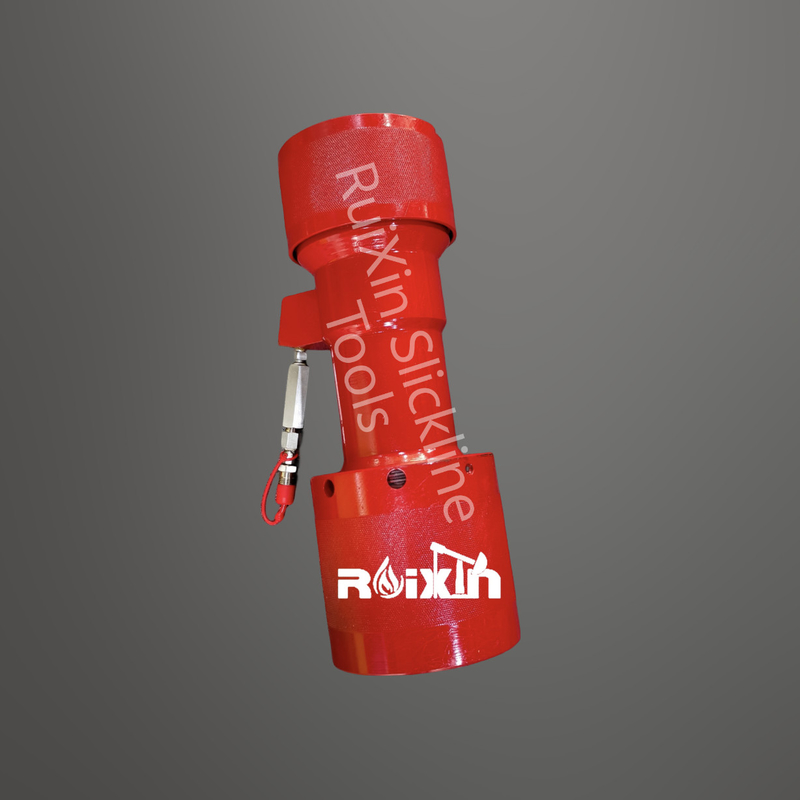

105MPa Chemical Injection Valve Injection Sub Wireline Pressure Control Equipment
I. Overview:
The chemical injection sub is designed to apply a deicer or corrosion inhibitor to the wire (cable) during a workover operation.
The chemical injection sub is installed under the grease head or stuffing box and uses a replaceable felt filler to wrap the wire and prevent chemicals from passing through the hole.
II.Structural features and application:
The chemical injection head is composed of an integrated body, slips, nonnuts, etc., and is designed with a backflow prevention device and a pipeline check valve, which can close the outlet when the injection is stopped to prevent the backflow of the injected liquid. The connection type is quick connector for easy connection. You can use a hex wrench to remove the valve body, take out the guide tube, etc. When installing the steel ball, you can grease the guide tube and glue the steel ball to it for installation. When replacing the felt washer, first remove the protective cover, and then remove the pressure cap from the protective cover, you can replace the felt washer.
| Wire size | CONNECTION | Working pressure(Psi) |
| 1/8" | 5-4ACME | 5000 |
| 1/8" | 5-3/4-4ACME | 10000 |
| 1/8" | 6-5/16-4ACME | 10000 |
| 1/8" | 6-1/2-4ACME | 10000 |
| 1/8" | 7-1/2-4ACME | 15000 |
| 7/32" | 4-3/4-4ACME | 5000 |
| 7/32" | 4-3/4-4ACME | 10000 |
| 7/32" | 2-10ACME | 10000 |
| 7/32" | 6-1/4-4ACME | 15000 |
Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.
◆Strict quality control system
Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.
◆Hard work, after-sales service
On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.
Welcome to contact us at any time.
