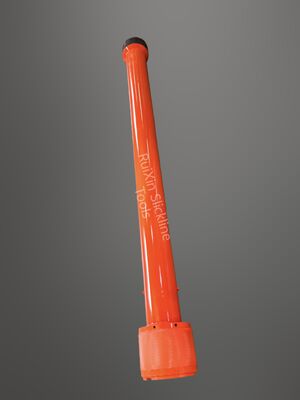

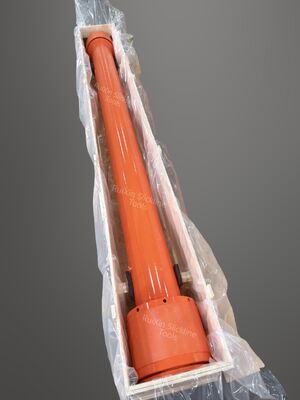

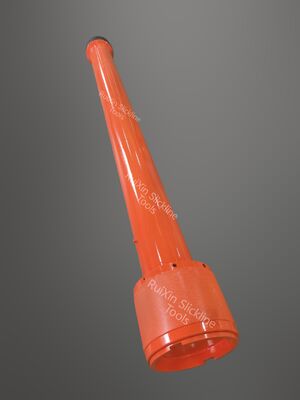

Wireline Lubricator 6.38Inch 70Mpa 10Ft API Wireline Pressure Control Equipment

Wireline  Lubricator 6.38Inch  70Mpa 10Ft API Wireline Pressure Control Equipment

overview

The Lubricator is a tube with a quick connection and capable of withstanding high pressure. It is used to accommodate the entry and exit of downhole tools into the well under pressure. The lower part of the  Lubricator pipe is connected to the  Lubricator valve, and the upper part is connected to the stuffing box or the grease injection system. During Lubricator operations, multiple sections of  Lubricator can be combined according to the length of the downhole tools.

The  Lubricator  can accommodate basic wireline operation tool strings such as the crown block, weight Bar and link jar .

The Lubricator  can be divided into two types: the upper section and the lower section.
The upper section Lubricator houses the basic tool string such as the rope rope socket ,weight bar , and Lubricator
The lower section  Lubricator needs to accommodate the downhole equipment. It has pressure relief holes on the tube , a pressure measurement connector is installed on it, and a pressure relief valve is attached afterwards, allowing the reading of the well pressure and pressure relief.

Technical parameters

Diameter  6.38Inch

Working pressure  70Mpa

Strength Test Pressure  105Mpa

Length 10FT

Connection type 11-1/2-4ACME.O Type

The Lubricator  is composed of a cylinder body, a quick union , etc. Among them:
The cylinder body is the main pressure-bearing part. It contains the tool string inside and is the main body of the Lubricator . A sealing ring is installed at the union connection to ensure the sealing performance of the connection between the lubricator ;

Any size can be customized according to customer requirements.

Pressure test

 lubricators shall periodically conduct stress tests, the test pressure shall be 1.5 times of working pressure. Install pressure test joint, and connect pressure test pipe; Start-up pressure test pump pressure test: will be pressure to test pressure, pressure maintenance 15 minutes, no leakage phenomenon, fill in test record card.

◆About Baoji RuiXin Slickline Tools

Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.

◆Strict quality control system

Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.

◆Hard work, after-sales service

On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.

Welcome to contact us at any time.
