Wireline Slickline Tools 1.7Inch～8Inch API Spec Guided Gauge Cutter
Structural Characteristics and Usage

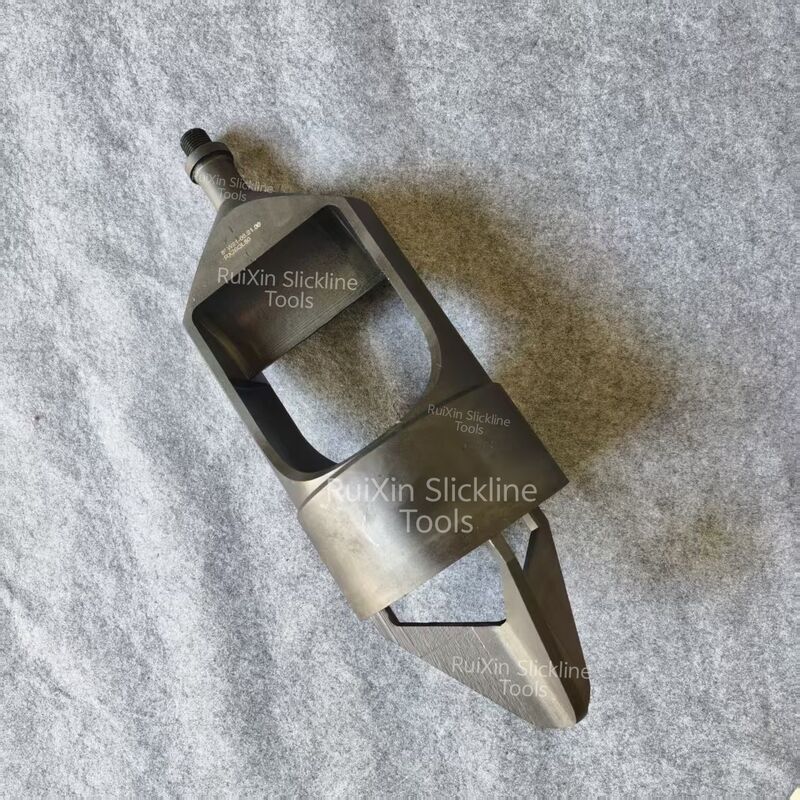

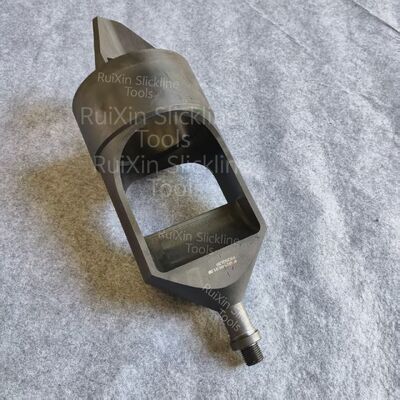

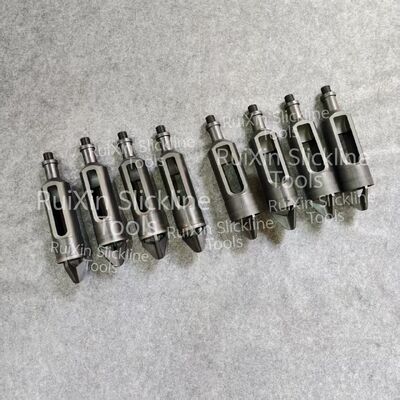

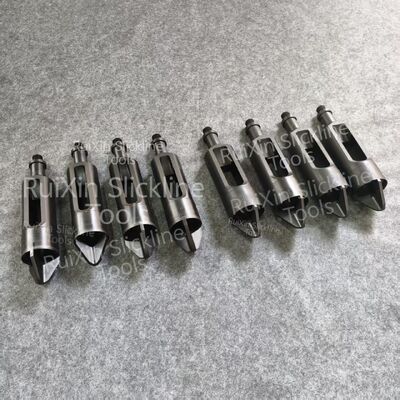

The guided gauge cutter tool consists of the body and the guiding head.
The upper part of the guiding scraper tool is the connecting thread and the fishing neck, while the lower part is the scraper tool. It is mainly used to scrape off wax, rust deposits, and rock debris from the oil pipe. This is the main functional part. After this area undergoes quenching treatment, the surface hardness is high, enabling it to smoothly and conveniently scrape off wax, rust deposits, and rock debris, etc. The middle part of the guiding scraper tool has a large chip-receiving hole, which can smoothly discharge rock debris and other substances to prevent the accumulation of such substances, thus ensuring the tool can work normally.
The guided gauge cutter tool is connected at the bottom of the tool string. When the guided gauge cutter tool descends to the position of the obstruction in the well, it is then vibrated downward by the impact device to scrape off the obstruction, thereby achieving the purpose of cleaning the dirt on the oil pipe.
Main parameters
| Size |
Fishing neck |
Connection |
| 1.7″ |
1.375″ |
15/16″-10UN |
| 2.25″ |
1.375″ |
15/16″-10UN |
| 3.75″ |
2.313″ |
1-1/16″-10UN |
| 4.25″ |
2.313″ |
1-1/16″-10UN |
| 5″ |
1.75″ |
1-1/16″-10UN |
| 6″ |
1.75″ |
1.875″ QLS |
| 7.5″ |
1.75″ |
1.875″ QLS |
| 8″ |
1.75″ |
1-1/16″-10UN |
Any size can be customized according to customer requirements.
The guided gauge cutte tool is an important auxiliary tool in steel wire operations. Before lowering the downhole tools, the guided gauge cutte tool is lowered first. This allows for determining whether the downhole device can pass through the tubing and also determines the position of the joints in the tubing. At the same time, the wax, rust deposits, and some large rock debris in the tubing can be scraped off together.
The front end of the guided gauge cutte is relatively hard. After use, it should be properly stored to avoid any collision with hard objects at the front end, as this could affect its usability.
◆About Baoji RuiXin Slickline Tools
Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.
◆Strict quality control system
Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.
◆Hard work, after-sales service
On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.
Welcome to contact us at any time.
