Wireline Roller Stem Wireline Tool String

Wireline Roller Stem Wireline Tool String

  • Wireline Roller Stem Wireline Tool String
Wireline Roller Stem Wireline Tool String
Product Details:
Place of Origin: China Baoji
Brand Name: Ruixin
Certification: API Q1
Model Number: 1.5inch 1.875inch 2inch 2.125inch
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1 set 3 weeks
Contact Now
Detailed Product Description
Material: Alloy Steel&Nickel Alloy Size: 1.5inch 1.75inch 1.875inch 2inch 2.5inch
Fish Neck: 1.187inch 1.5inch 1.75inch 1.875inch 2inch 2.5inch Length: 2ft 3ft 5ft
Connection: SR QLS HDQRJ, BLQJ Service: Standard&H2S

Wireline Roller Stem Wireline Tool String


A wireline roller stem is designed to replace conventional stem for operation in deviated well bores. The rollers on the stem run along the underside wall of the tubing. The use of rollers greatly reduces the friction that conventional stem would encounter.

II.General Technical Parameters



Fishing neck Connection Length PN.
1.25" 1.187" 15/16UN 2ft W03-05.05.00
1.25" 1.187" 15/16UN 3ft W03-05.06.00
1.25" 1.187" 15/16UN 5ft W03-05.07.00
1.5" 1.375" 15/16UN 2ft W03-05.08.00
1.5" 1.375" 15/16UN 3ft W03-05.04.00
1.5" 1.375" 15/16UN 5ft W03-05.09.00
1.75" 1.375" 15/16UN 2ft W03-05.10.00
1.75" 1.375" 15/16UN 3ft W03-05.11.00
1.75" 1.375" 15/16UN 5ft W03-05.12.00
1.875" 1.75" 1-1/16UN 2ft W03-05.13.00
1.875" 1.75" 1-1/16UN 3ft W03-05.03.00
1.875" 1.75" 1-1/16UN 5ft W03-05.14.00
2.125" 1.75" 1-1/16UN 2ft W03-05.15.00
2.125" 1.75" 1-1/16UN 3ft W03-05.16.00
2.125" 1.75" 1-1/16UN 5ft W03-05.02.00
2.5" 2.313" 1-9/16UN 2ft W03-05.17.00
2.5" 2.313" 1-9/16UN 3ft W03-05.18.00
2.5" 2.313" 1-9/16UN 5ft W03-05.19.00

Note. More customized parts are available upon request.

III.Structure characteristics and application

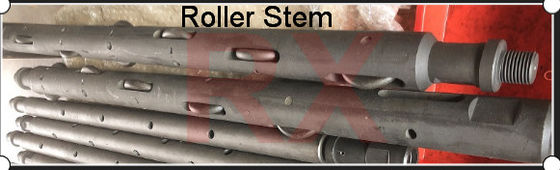

The wireline roller stem is modified based on conventional stem, with milled slots to accommodate simple roller wheels. The wheels run on high tensile steel axle bolts, which are locked in position by roller pins.


Wireline Roller Stem Wireline Tool String 0
