|Place of Origin:||China Baoji|
|Model Number:||1.25inch 1.75inch 1.875inch 2.125inch 2.5inch|
|Minimum Order Quantity:||1|
|Packaging Details:||Wooden Box|
|Delivery Time:||1 week|
|Supply Ability:||1 set 1 week|
|Name:||Wireline Pear Drop Rope Socket Wireline Tool String||Size:||1.25inch 1.75inch 1.875inch 2.125inch 2.5inch|
|Material:||Alloy Steel&Nickel Alloy||Application:||Slickline& Wireline|
|Advantage:||Simple& Low Maintenance Design|
Wireline Pear Drop Rope Socket,
Rope Socket Wireline Tool String,
HDQRJ Wireline Tool String
HDQRJ Pear Drop Rope Socket Wireline Tool String Low Maintenance

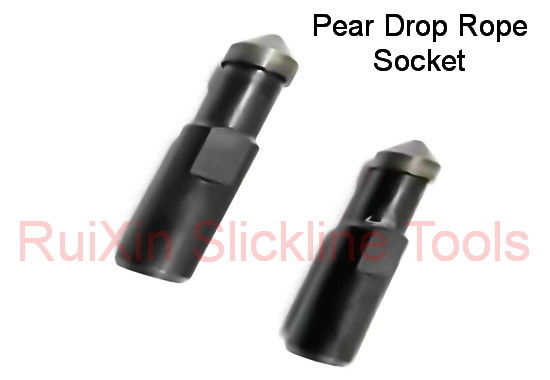

Wireline Pear Drop Rope Socket Wireline Tool String
Wireline Pear Drop Rope Socket are used as a method of connecting the Slickline to the tool string, from wire sizes from 0.108”up to 0.160”
Assembly consists of a body with external fishing neck, sleeve and brass wedge (pear drop)
The pear drop is grooved to accommodate the wire and comes complete with a securing grub screw
The more pull applied on the Slickline, the more the pear drop pulls into the sleeve giving a
tighter grip on the Slickline
1. Pear drop sockets are ordered to suit the wire size being deployed
2. Simple, low maintenance design
3. Pear Drop Rope Sockets are used to attach wireline to the toolstring and are predominately used
with wireline sizes from 0.092” to 0.160”* dependant on size.
The Wireline Pear Drop Rope Socket assembly consists of a body with an external fishing neck, sleeve and a brass wedge (“pear drop”) which is grooved to accommodate the wire and comes complete with a securing grub screw.
◆About Baoji RuiXin Slickline Tools
Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.
◆Strict quality control system
Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.
◆Hard work, after-sales service
On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.
