2 Inch JDC Type Slickline Pulling Tools With BLQJ Connection

2 Inch JDC Type Slickline Pulling Tools With BLQJ Connection

  • 2 Inch JDC Type Slickline Pulling Tools With BLQJ Connection
  • 2 Inch JDC Type Slickline Pulling Tools With BLQJ Connection
2 Inch JDC Type Slickline Pulling Tools With BLQJ Connection
Product Details:
Place of Origin: China Baoji
Brand Name: Ruixin
Certification: API Q1
Model Number: 1.25inch,1.5inch 2inch 2.5inch.3inch,4inch
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 2-3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1 set 2 weeks
Contact Now
Detailed Product Description
Name: JD Type Pulling Tool Wireline Pulling Tool Size: 1.25inch—4inch
Fish Neck: 1.187inch 1.375inch 1.75inch 2.313inch,3.125inch Connection: SR,QLS,BLQJ,HDQRJ
Material: Alloy Steel&Nickel Alloy To Engage Size: 0.875inch,1.187inch 1.375inch 1.75inch 2.313inch,3.125inch
Function: To Retrieve Subsurface Devices With Different Fishing Neck Reach.
High Light:

JD Type Slickline Pulling Tools


2 Inch Slickline Pulling Tools


BLQJ Connection Wireline Pulling Tool

2 inch  JDC Type Pulling Tool Wireline Pulling Tool

I. Overview:

JD Type Pulling tools are a tool or instrument (such as balance rod, plug, pressure gauge, etc.) that can be put, salvage. It can be shocked down. Different from the gripping spacing can be divided into three kinds of JDC, JDS and JDL.

II, the commonly used specifications and technical parameters:

Size    A D  Fishing  Connection   Grab diameter
1.25" 1.291" 1.187" 15/16UN 0.875"
1.5" 1.422" 1.187" 15/16UN 1.187"
2" 1.86" 1.375" 15/16UN 1.375"
2.5" 2.25" 1.375" 15/16UN 1.75"
3" 2.796" 1.75" 15/16UN 2.313"
4" 3.75" 2.313" 1-1/16UN 3.125"

III ,structure characteristics
JD Type Pulling tools consist of upper joints, closures, main springs, auxiliary springs, mandrels, slides, outer cylinders, salvage claws, cutings, etc.The upper end of the upper connector has a standard salvage neck, which is used to connect to the lower part of the basic tool string; the lower end has an internal thread, which is connected to the outer cylinder, which constitutes the carrier body of the delivery tool.

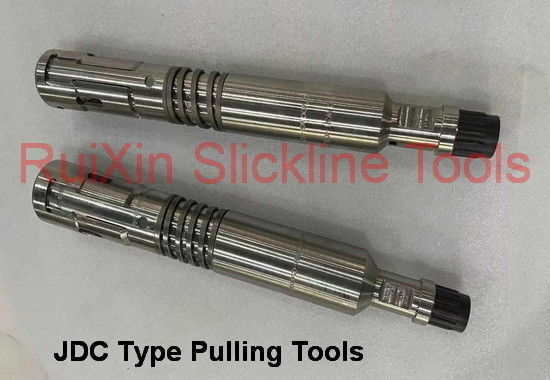

2 Inch JDC Type Slickline Pulling Tools With BLQJ Connection 0

IV. Precautions:
1. Before going down, there should be sufficient space in the inner diameter of the tube column in order to salvage the claws; if necessary, it can be used first;
2. Select the appropriate grasp of distances according to the different landscaping and salvage tools.

Welcome to contact us at any time.

2 Inch JDC Type Slickline Pulling Tools With BLQJ Connection 1
