Place of Origin: | China Baoji |
Brand Name: | Ruixin |
Certification: | API Q1 |
Model Number: | 1.25inch 1.5inch 1.75inch 1.875inch 2inch 2.5inch |
Minimum Order Quantity: | 1 |
---|---|
Packaging Details: | Wooden Box |
Delivery Time: | 2-3 weeks |
Payment Terms: | T/T |
Supply Ability: | 1 set 2 weeks |
Application: | Wireline Roller Ball Knuckle Joint Wireline Tool String | Size: | 1.25inch 1.5inch 1.75inch 1.875inch 2inch 2.5inch |
---|---|---|---|
Fish Neck: | 1.187inch 1.375inch 1.75inch 2.313inch | Connection: | SR,QLS,BLQJ,HDQRJ |
Material: | Alloy Steel&Nickel Alloy | Use: | Wireline &Slickline |
Advantage: | Add Flexibility To The Tool String | Working Condition: | Standard |
Highlight: | Knuckle Joint Wireline Tool String,Roller Ball Wireline Tool String,2 inch Wireline Knuckle Joint |

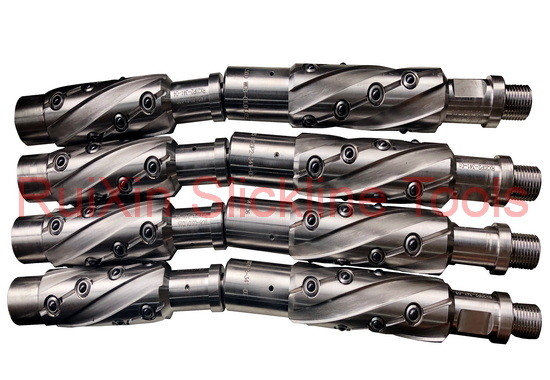

2.5 Inch Roller Ball Knuckle Joint Wireline Tool String For Gyroscopes
Wireline Roller Ball Knuckle Joint Wireline Tool String
Ⅰ. Introduction
Wireline Roller Ball Knuckle Joint Wireline Tool String is used to add flexibility within the tool string and are particularly effective within de
Ⅱ. General Technical Parameters:
Size | Fishing neck | Connection Type |
1.25" | 1.187" | 15/16UN QLS HDQRJ BLQJ |
1.5" | 1.375" | 15/16UN QLS HDQRJ BLQJ |
1.75" | 1.375" | 15/16UN QLS HDQRJ BLQJ |
1.875" | 1.75" | 1-1/16UN QLS HDQRJ BLQJ |
2" | 1.75" | 1-1/16UN QLS HDQRJ BLQJ |
2.5" | 2.313" | 1-9/16UN QLS HDQRJ BLQJ |
Note: Tools Can Be Manufactured To Any Size Required.
III. Structural features and use:
Wireline Roller Ball Knuckle Joint bearing can not only bear radial and axial loads at the same time, but also bear a wide range of misalignment. Therefore, this bearing type is considered to be suitable for supporting and lubricating inertial components (such as gyroscopes) in aerospace and navigation fields. In this research, we put forward a numerical method to predict static and dynamic characteristics, and carry out parameter analysis on the rotating spiral groove of aerodynamic spherical bearings. The Reynolds equation is calculated by finite difference method and perturbation method, and the force coefficient is obtained. Given the complex groove distribution, the discontinuity and compressibility of the membrane, it is difficult to solve the equation numerically in the spherical coordinate system. Therefore, in this study, the Reynolds equation is modified into plane oblique coordinate system by parameter transformation and oblique coordinate transformation.Eight-point method is also used to deal with the discontinuity of film thickness. The predicted results of this method are in good agreement with the experimental data.
Then, the parameters of nominal clearance, eccentricity, rotating speed, groove depth,groove angle and disturbance frequency are studied to determine the best design parameters. The results show that these factors significantly affect the bearing characteristics in both radial and axial directions.
Welcome to contact us at any time
◆About Baoji RuiXin Slickline Tools
Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.
◆Strict quality control system
Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.
◆Hard work, after-sales service
On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.
