4 inch GS hydraulic labor tools Wireline Pulling Tool

4 inch GS hydraulic labor tools Wireline Pulling Tool

  • 4 inch GS hydraulic labor tools Wireline Pulling Tool
  • 4 inch GS hydraulic labor tools Wireline Pulling Tool
4 inch GS hydraulic labor tools Wireline Pulling Tool
Product Details:
Place of Origin: China Baoji
Brand Name: Ruixin
Certification: API Q1
Model Number: 1.5inch 2inch 2.5inch 3inch 3.5inch,4inch 5inch 6inch 7inch
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1 set 3 weeks
Contact Now
Detailed Product Description
Name: 4 Inch GS Hydraulic Labor Tools Wireline Pulling Tool Size: 1.5inch 2inch 2.5inch 3inch 3.5inch,4inch 5inch 6inch 7inch
Fish Neck: 1.187inch 1.375inch 1.75inch 2.313inch 3.125inch Actual OD: 1.47inch~5.83inch
Material: Alloy Steel&Nickel Alloy Connection: SR,QLS,BLQJ,HDQRJ

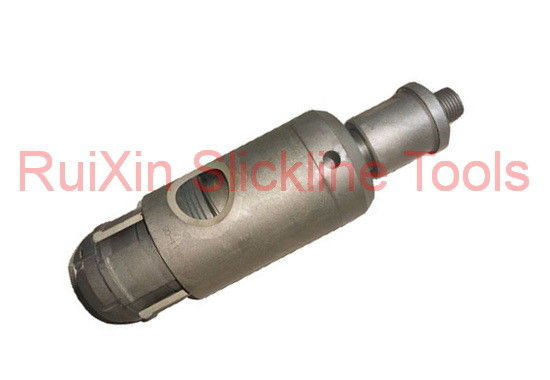

4 Inch GS hydraulic labor tools Wireline Pulling Tool

GS hydraulic labor tools Wireline Pulling Tool is used to pull inner fishing necks, which can cut off and release an

object downward and is usually is used to throw and fishing the lock cylinder, packer, bridge plug and others with

inner fishing necks. After connecting the GU joint (upward shear joint), it can be converted to be an upward shear

and releasing tool.



Size Actual OD Fishing neck Fishing diameter Connection PN.
1-1/2″ 1.47″ 1.187″ 1.06″ 15/16″-10UN W32-01.05.00
2″ 1.81″ 1.375″ 1.38″ 15/16″-10UN W32-01.01.00
2-1/2″ 2.25″ 1.375″ 1.81″ 15/16″-10UN W32-01.02.00
3″ 2.72″ 2.313″ 2.31″ 1-1/16″-10UN W32-01.03.00
3-1/2″ 3.11″ 2.313″ 2.62″ 1-1/16″-10UN W32-01.06.00
4″ 3.62″ 2.313″ 3.12″ 1-1/16″-10UN W32-01.07.00
5″ 4.5″ 3.125″ 4″ 1-1/16″-10UN W32-01.08.00
6″ 5.56″ 3.125″ 4.75″ 1-1/16″-10UN W32-01.09.00
7″ 5.83″ 3.125″ 5.38″ 1-1/16″-10UN W32-01.10.00



Welcome to contact us at any time.
