2 Inch-1.25 Inch GS Pulling Tool Wireline Pulling Tool

2 Inch-1.25 Inch GS Pulling Tool Wireline Pulling Tool

  • 2 Inch-1.25 Inch GS  Pulling Tool Wireline Pulling Tool
  • 2 Inch-1.25 Inch GS  Pulling Tool Wireline Pulling Tool
2 Inch-1.25 Inch GS  Pulling Tool Wireline Pulling Tool
Product Details:
Place of Origin: China Baoji
Brand Name: Ruixin
Certification: API Q1
Model Number: 1.5inch 2inch 2.5inch 3inch 3.5inch,4inch 5inch 6inch 7inch
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 2-4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1 set 2 weeks
Contact Now
Detailed Product Description
Name: 2 Inch-1.25 Inch GS Pulling Tool Wireline Pulling Tool Size: 1.5inch 2inch 2.5inch 3inch 3.5inch,4inch 5inch 6inch 7inch
Fish Neck: 1.187inch 1.375inch 1.75inch 2.313inch 3.125inch Fishing Diameter: 1.06inch~5.38inch
Actual OD: 1.47inch~5.83inch Material: Alloy Steel&Nickel Alloy
Connection: SR,QLS,BLQJ,HDQRJ

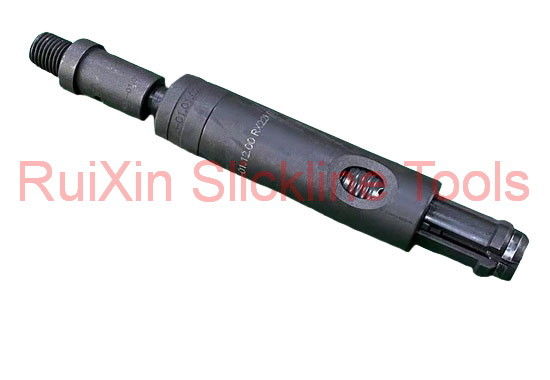

2 Inch-1.25 Inch GS Pulling Tool Wireline Pulling Tool

I. Introduction: (B)

The GS type pulling tool is used to pull inner fishing necks, which can cut off and release an object downward and is usually is used to throw and fishing the lock cylinder, packer, bridge plug and others with inner fishing necks. After connecting the GU joint (upward shear joint), it can be converted to be an upward shear and releasing tool.

II. General Technical Parameters: (A)

Size Actual OD Fishing neck Fishing diameter Connection PN.
1-1/2″ 1.47″ 1.187″ 1.06″ 15/16″-10UN W32-01.05.00
2″ 1.81″ 1.375″ 1.38″ 15/16″-10UN W32-01.01.00
2-1/2″ 2.25″ 1.375″ 1.81″ 15/16″-10UN W32-01.02.00
3″ 2.72″ 2.313″ 2.31″ 1-1/16″-10UN W32-01.03.00
3-1/2″ 3.11″ 2.313″ 2.62″ 1-1/16″-10UN W32-01.06.00
4″ 3.62″ 2.313″ 3.12″ 1-1/16″-10UN W32-01.07.00
5″ 4.5″ 3.125″ 4″ 1-1/16″-10UN W32-01.08.00
6″ 5.56″ 3.125″ 4.75″ 1-1/16″-10UN W32-01.09.00
7″ 5.83″ 3.125″ 5.38″ 1-1/16″-10UN W32-01.10.00

Note: More customized parts are available upon request.

III. Structural features: (C)

The GS type pulling tool is mainly composed of fishing neck, shear pin seat, main spring, spring seat, secondary spring, fixed seat of claw, skirt, fishing claw, mandrel, etc..

While the tool is fishing and when the fishing claw just touches the mouth end of the inner fishing neck, it will retreat and fall in the position where the mandrel diameter is a little small and then is taken back; after the fishing claw enters into the inner fishing neck completely, the fishing claw will splay immediately with the thrust of compressed secondary spring.

While throwing it and when the skirt withstands the end face of the inner fishing neck, the tool will move downward can cut off the shear pin because of the relative motion of mandrel and shear pin seat; under the function of main spring and spring seat, the fishing claw and mandrel have relative motion and then the fishing claw withdraws.

The fixed seat of claw can make the fishing claws distributed uniformly and act synchronously.

IV. Method of application:

1. Assemble and disassemble the shear pin:

1.1 Unscrew the shear pin seat and skirt to expose the shear pin hole completely.

1.2 Screw on the tool for installing pins on the top of the fishing neck and screw the handle to align to the shear pin hole.

1.3 Screw up the threads of the shear pin seat and skirt after assembling or disassembling the shear pin.

1.4 Remove the tool for installing pins.

2. Pulling operation:

2.1 Connect the GS pulling tool with the bottom of the basic tool string.

2.2 Put the tool to be thrown under the GS pulling tool.

2.3 Lower the tool string to the precalculated position and move it downward to cut off the shear pin.

2.4 Pull out the tool string.

3. Fishing operation:

3.1 Connect the GS pulling tool with the bottom of the basic tool string.

3.2 Lower the tool string and confirm whether it reaches the tool to be fished through the weight indicator of the winch on the ground.

3.3 Lift the tool string.

3.4 If the tool string is blocked when it is lifted, it can move down to cut off the shear pin and slip out of the hand.

4. Overground releasing

4.1 Push down the tool to withstand the end of inner fishing neck.

4.2 Pinch the fixed seat of claw from the outside of skirt, pull it up and then it will be released.

Notes: 1. When lowering the GS pulling tool, inspect whether the fishing claw splays and withdraws normally.

2. Inspect whether the screw joint of GS pulling tool is loose.

V. Maintenance:

1. After disassembling the tool, inspect the damages of all parts and change the damaged parts.

2. While assembling the tool, the thread surface shall be painted with a thin layer of grease.

3. After assembly, the connection threads of fishing neck shall be protected with thread protector and marked for standby application.

Tools Can Be Manufactured To Any Size Required.Welcome to contact us at any time.
