| Place of Origin: | China Baoji |
| Brand Name: | Ruixin |
| Certification: | API Q1 |
| Model Number: | 2inch- 4inch |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Wooden Box |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1 set 2 weeks |
| Name: | Self-releasing Slip Fishing Spear Wireline Pulling Tool | Material: | Alloy Steel&Nickel Alloy |
|---|---|---|---|
| Size: | 2inch- 4inch | Fish Neck: | 1.375inch 1.75inch 2.313inch 3.125inch |
| Body O.D: | 1.84inch 2.19inch 2.69inch 3.65inch | Function: | To Perforate Standard And Heavy Wall Tubing Under Pressure |
| Connection: | SR,QLS,BLQJ,HDQRJ |

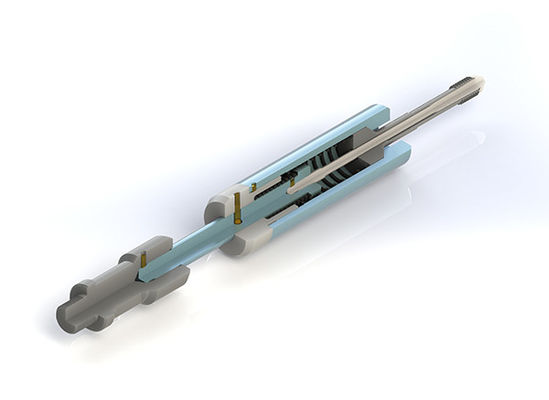

Self-releasing slip fishing spear Wireline Pulling Tool
The self-releasing spear is used to fish tools that have a damaged internal fishing neck that does not allow retrieval with
conventional pulling tools
The tool is operated using normal techniques
| Size | FN | Connection | Slip Qty | Technical Parameter |
| 2＂ | 1.375＂ | 15/16UN | 1 | 1-1/8″-1-7/8″ |
| 3＂ | 2.313＂ | 1-1/16UN | 1 | 2.25″-2.875″ |
| 3.5＂ | 2.313＂ | 1-1/16UN | 1 | 2.625″-3.125″ |
| 4＂ | 2.313＂ | 1-1/16UN | 1 | 3-1/8＂-3-3/4＂ |
Attention
1. Before down the well, the diameter of the inner hole of the salvaging object should be known, so as to select the
size of the collet-type spear;
2. When the stressed area of collet is small and the load is large, it is easy to burst the fish top. It gets stuck in the well.
