2 Inch GS Wireline Pulling Tool Alloy Steel Material

2 Inch GS Wireline Pulling Tool Alloy Steel Material

  • 2 Inch GS Wireline Pulling Tool Alloy Steel Material
  • 2 Inch GS Wireline Pulling Tool Alloy Steel Material
2 Inch GS Wireline Pulling Tool Alloy Steel Material
Product Details:
Place of Origin: China Baoji
Brand Name: Ruixin
Certification: API Q1
Model Number: 5inch 6inch
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 2-4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1 set 2 weeks
Contact Now
Detailed Product Description
Name: 2 Inch GS Pulling Tool Wireline Pulling Tool Size: 5inch 6inch
Material: Alloy Steel&Nickel Alloy Fish Neck: 1.187inch 1.375inch 1.75inch
Actual OD: 1.47inch~5.83inch Fishing Diameter: 1.06inch~5.38inch
Connection: SR,QLS,BLQJ,HDQRJ Working Condition: Standard
High Light:

GS Wireline Pulling Tool

,

5 Inch Wireline Pulling Tool

,

Alloy Steel GS Pulling Tool

2 Inch GS Wireline Pulling Tool Alloy Steel Material



GS Pulling Tool Wireline Pulling Tool

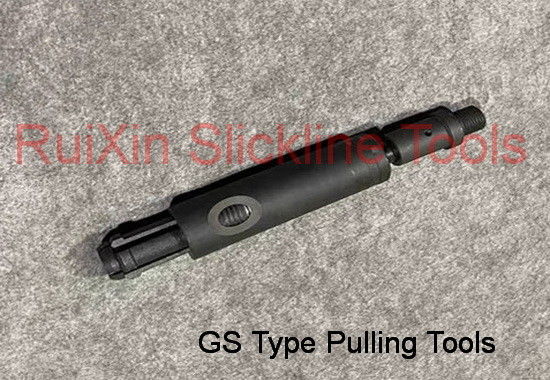

I. Introduction:

The GS type pulling tool is used to pull inner fishing necks, which can cut off and release an object downward and is usually is used to throw and fishing the lock cylinder, packer, bridge plug and others with inner fishing necks. After connecting the GU joint (upward shear joint), it can be converted to be an upward shear and releasing tool.

II. General Technical Parameters:

Size

Fishing neck

Connection

PN.

1-1/2″

1.187″

15/16″-10UN

W**-0*.0*.00

2″

1.375″

15/16″-10UN

W**-0*.0*.00

2-1/2″

1.375″

15/16″-10UN

W**-0*.0*.00

3″

2.313″

1-1/16″-10UN

W**-0*.0*.00

3-1/2″

2.313″

1-1/16″-10UN

W**-0*.0*.00

4″

2.313″

1-1/16″-10UN

W**-0*.0*.00

5″

3.125″

1-1/16″-10UN

W**-0*.0*.00

6″

3.125″

1-1/16″-10UN

W**-0*.0*.00

7″

3.125″

1-1/16″-10UN

W**-0*.0*.00

Note: More customized parts are available upon request.

2 Inch GS Wireline Pulling Tool Alloy Steel Material 0

III. Maintenance:

1. After disassembling the tool, inspect the damages of all parts and change the damaged parts.

2. While assembling the tool, the thread surface shall be painted with a thin layer of grease.

3. After assembly, the connection threads of fishing neck shall be protected with thread protector and marked for standby application.

Welcome to contact us at any time.

2 Inch GS Wireline Pulling Tool Alloy Steel Material 1
