Gyroscopes Wireline Tool String 1.25 Inch Roller Ball Knuckle Joint

Gyroscopes Wireline Tool String 1.25 Inch Roller Ball Knuckle Joint

  • Gyroscopes Wireline Tool String 1.25 Inch Roller Ball Knuckle Joint
  • Gyroscopes Wireline Tool String 1.25 Inch Roller Ball Knuckle Joint
  • Gyroscopes Wireline Tool String 1.25 Inch Roller Ball Knuckle Joint
Gyroscopes Wireline Tool String 1.25 Inch Roller Ball Knuckle Joint
Product Details:
Place of Origin: China Baoji
Brand Name: Ruixin
Certification: API Q1
Model Number: 1.25inch 1.5inch 1.875inch 2inch 2.125inch
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 2-3 weeks
Payment Terms: T/T
Supply Ability: 1 set 2 weeks
Contact Now
Detailed Product Description
Name: 1.25 Inch Wireline Roller Ball Knuckle Joint Wireline Tool String Size: 1.25inch 1.5inch 1.75inch 1.875inch 2inch 2.5inch
Fish Neck: 1.187inch 1.375inch 1.75inch 2.313inch Material: Alloy Steel&Nickel Alloy
Connection: SR,QLS,BLQJ,HDQRJ Use: Wireline &Slickline
Advantage: Add Flexibility To The Tool String
High Light:

Roller Ball Knuckle Joint

,

1.25 Inch Knuckle Joint

,

Gyroscopes Knuckle Joint

1.25 Inch Roller Ball Knuckle Joint Wireline Tool String For Gyroscopes



Wireline Roller Ball Knuckle Joint Wireline Tool String



Ⅰ. Introduction

Wireline Roller Ball Knuckle Joint Wireline Tool String is used to add flexibility within the tool string and

are particularly effective within de

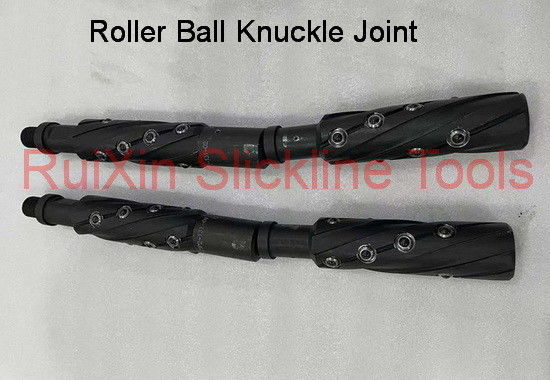

Gyroscopes Wireline Tool String 1.25 Inch Roller Ball Knuckle Joint 0

Ⅱ. General Technical Parameters

Size Fishing neck Connection Type
1.25" 1.187" 15/16UN QLS HDQRJ BLQJ
1.5" 1.375" 15/16UN QLS HDQRJ BLQJ
1.75" 1.375" 15/16UN QLS HDQRJ BLQJ
1.875" 1.75" 1-1/16UN QLS HDQRJ BLQJ
2.5" 2.313" 1-9/16UN QLS HDQRJ BLQJ

Note: More customized parts are available upon request.



III. Structural features and use:

Roller Ball Knuckle Joint are a spherical design, a ball bolt serviced, and the main force is at the spherical surface of the connection sleeve, and the angle between the shock and the delivery tool can be used to facilitate the adjustment tool string. Unanimously with the tilt direction of the tubing, especially in the curved tubing and the direction of wire work, the universal joint is essential.

ⅠV.pay attention to:

1. The heavy-duty spherical mandes is often connected below the vibrator.
2. When the heavy-duty spherical universal joint does not act as a steering tool, it must be connected above the steering tool.



 Welcome to contact us at any time.

Gyroscopes Wireline Tool String 1.25 Inch Roller Ball Knuckle Joint 1

Gyroscopes Wireline Tool String 1.25 Inch Roller Ball Knuckle Joint 2



About Baoji RuiXin Slickline Tools

Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.

Strict quality control system

Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.

Hard work, after-sales service

On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.
