| Place of Origin: | China Baoji |
| Brand Name: | Ruixin |
| Certification: | API Q1 |
| Model Number: | 1.25inch 1.5inch 1.875inch 2inch 2.125inch |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Wooden Box |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1 set 2 weeks |
| Name: | 1.5 Inch Wireline Roller Ball Knuckle Joint Wireline Tool String | Material: | Material Aluminum Alloy |
|---|---|---|---|
| Size: | 1.25inch 1.5inch 1.75inch 1.875inch 2inch 2.5inch | Fish Neck: | 1.187inch 1.375inch 1.75inch 2.313inch |
| Connection: | SR,QLS,BLQJ,HDQRJ | Use: | Wireline &Slickline |
| Advantage: | Add Flexibility To The Tool String | ||
| Highlight: | Gyroscopes Wireline Tool String,1.5 Inch Roller Ball Knuckle Joint,HDQRJ Roller Ball Knuckle Joint |
||

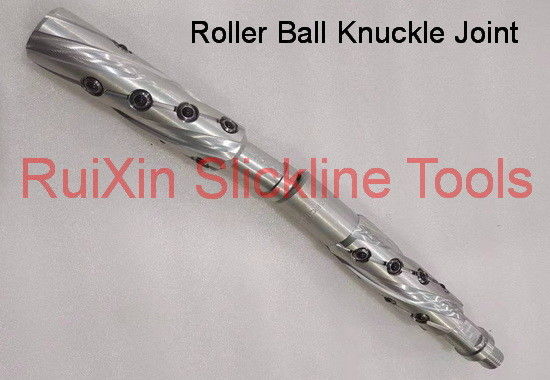

1.5 Inch Roller Ball Knuckle Joint Wireline Tool String For Gyroscopes Material aluminum alloy
Wireline Roller Ball Knuckle Joint Wireline Tool String
Ⅰ. Introduction
Wireline Roller Ball Knuckle Joint Wireline Tool String is used to add flexibility within the tool string and
are particularly effective within de
Ⅱ. General Technical Parameters:
| Size | Fishing neck | Connection Type |
| 1.25＂ | 1.187＂ | 15/16UN QLS HDQRJ BLQJ |
| 1.5＂ | 1.375＂ | 15/16UN QLS HDQRJ BLQJ |
| 1.75＂ | 1.375＂ | 15/16UN QLS HDQRJ BLQJ |
| 1.875＂ | 1.75＂ | 1-1/16UN QLS HDQRJ BLQJ |
| 2.5＂ | 2.313＂ | 1-9/16UN QLS HDQRJ BLQJ |
Note: More customized parts are available upon request.
III. Structural features and use:
Roller Ball Knuckle Joint are a spherical design, a ball bolt serviced, and the main force is at the spherical surface of the connection sleeve, and the angle between the shock and the delivery tool can be used to facilitate the adjustment tool string. Unanimously with the tilt direction of the tubing, especially in the curved tubing and the direction of wire work, the universal joint is essential.
IV.pay attention to:
1. The heavy-duty spherical mandes is often connected below the vibrator.
2. When the heavy-duty spherical universal joint does not act as a steering tool, it must be connected above the steering tool.
