Place of Origin: | China Baoji |
Brand Name: | Ruixin |
Certification: | API Q1 |
Model Number: | 1.5inch - 4inch |
Minimum Order Quantity: | 1 |
---|---|
Packaging Details: | Wooden Box |
Delivery Time: | 3-4 weeks |
Supply Ability: | 1 set 3 weeks |
Name: | Special Salvage Tool Wireline Pulling Tool | Size: | 1.5inch - 4 Inch |
---|---|---|---|
Material: | Alloy Steel&Nickel Alloy | Connection: | SR,QLS,BLQJ,HDQRJ |
Fish Neck: | 1.187inch 1.375inch 1.75inch 2.313inch | Type: | SB SM SS |
Grasping Diameter: | 0.875inch 1inch 1.187inch 1.375inch 1.75inch 2.313inch 3.125inch | ||
Highlight: | SM Type Wireline Pulling Tool,QLS Connection Wireline Pulling Tool,QLS Wireline Well Pulling Tools |

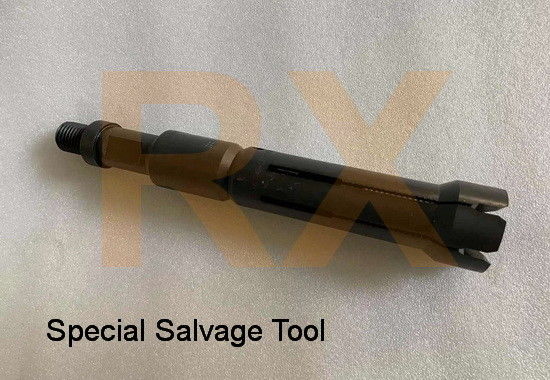

The Special Salvage Tool Wireline Pulling Tool
I. Overview:
This special salvage tool is a special tool for salvaging plungers.
II. Structural characteristics:
The special salvage tool is mainly composed of an upper joint, a cylinder, a guide joint, an auxiliary spring and a salvage claw. The specific structure is shown in the attached drawings.
III. Working principle:
This tool is mainly used for salvaging the plunger rising to the wellhead. When the plunger rises to the wellhead, if you want to take out the plunger and prevent the plunger from continuing to work, get down the salvage tool, shock down, open the salvage claws, grab the plunger head to salvage the neck, and then the plunger can be fished out. plug. Since there is no mandrel in the heart of the salvage tool, there is no need to worry that the one-way valve of the plunger will be opened during salvage, which ensures the successful salvage of the plunger. At the same time, the front section is equipped with a salvage guide joint, which can make the salvage tool successfully complete the salvage in the φ65 hole. The situation where the plunger salvage neck cannot be found is avoided.
IV, maintenance:
When not in use for the time being, apply grease to the thread and place the thread protector.
Welcome to contact us at any time.
