3 Inch JDC Type Aluminum Alloy Well Fishing Tools

3 Inch JDC Type Aluminum Alloy Well Fishing Tools

  • 3 Inch JDC Type Aluminum Alloy Well Fishing Tools
3 Inch JDC Type Aluminum Alloy Well Fishing Tools
Product Details:
Place of Origin: China Baoji
Brand Name: Ruixin
Certification: API Q1
Model Number: 1.25inch,1.5inch 2inch 2.5inch.3inch,4inch
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 2-3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1 set 2 weeks
Contact Now
Detailed Product Description
Name: 3 Inch JDC Type Slickline Pulling Tools Material Aluminum Alloy Material: Material Aluminum Alloy
Size: 1.25inch—4inch Fish Neck: 1.187inch 1.375inch 1.75inch 2.313inch,3.125inch
Connection: SR,QLS,BLQJ,HDQRJ To Engage Size: 0.875inch,1.187inch 1.375inch 1.75inch 2.313inch,3.125inch
Function: To Retrieve Subsurface Devices With Different Fishing Neck Reach.
High Light:

Aluminum Alloy Well Fishing Tools


JDC Type Well Fishing Tools


15/16UN 3 Inch Well Fishing Tools

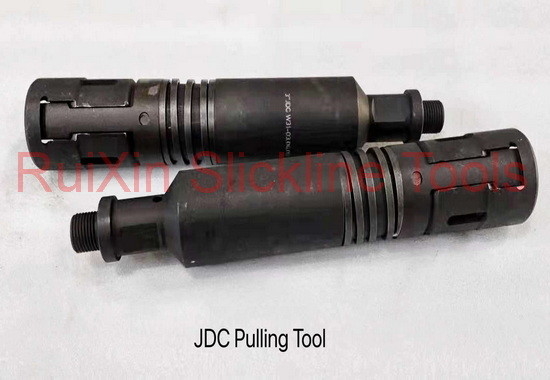

3 inch  JDC Type Pulling Tool Wireline Pulling Tool Material aluminum alloy
I. Overview:
JDC Type Pulling tools are a tool or instrument (such as balance rod, plug, pressure gauge, etc.) that can be put, salvage. It can be shocked down. Different from the gripping spacing can be divided into three kinds of JDC, JDS and JDL.
II, the commonly used specifications and technical parameters:

Size    Fishing  Connection  PN
1.25" 1.187" 15/16UN w*0-*0.*0*0
1.5" 1.187" 15/16UN w*0-*0.*0*0
2" 1.375" 15/16UN w*0-*0.*0*0
2.5" 1.375" 15/16UN w*0-*0.*0*0
3" 1.75" 15/16UN w*0-*0.*0*0
4" 2.313" 1-1/16UN w*0-*0.*0*0

III, ,structure characteristics
JDC Type Pulling tools consist of upper joints, closures, main springs, auxiliary springs, mandrels, slides, outer cylinders, salvage claws, cutings, etc.

IV.  Precautions:

1. Before going down, there should be sufficient space in the inner diameter of the tube column in order to salvage the claws; if necessary, it can be used first;
2. Select the appropriate grasp of distances according to the different landscaping and salvage tools.

Welcome to contact us at any time.
