Fluted Centralizer Wireline Tool String 2.75inch QLS Connection

Fluted Centralizer Wireline Tool String 2.75inch QLS Connection

  • Fluted Centralizer Wireline Tool String 2.75inch QLS Connection
Fluted Centralizer Wireline Tool String 2.75inch QLS Connection
Product Details:
Place of Origin: China Baoji
Brand Name: Ruixin
Certification: API Q1
Model Number: 2-3/8 tubing,2-7/8 tuing,3-1/2 tubing,4-1/2 tubing
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 1 week
Supply Ability: 1 set 1 week
Contact Now
Detailed Product Description
Name: Fluted Centralizer Wireline Tool String Material: Alloy Steel&Nickel Alloy
Size: 1.875inch 2.15inch 2.81inch 2.75inch Fish Neck: 1.375inch 1.75inch 2.313inch
Tubing OD: 2-3/8 Tubing,2-7/8 Tuing,3-1/2 Tubing,4-1/2 Tubing Connection: SR,QLS,BLQJ,HDQRJ
Advantage: To Centering The Tool String
High Light:

Fluted Centralizer Slickline Tool String

,

QLS Connection Fluted Centralizer

,

2.75inch Wireline Fishing Tools

Fluted Centralizer Wireline Tool String

I. Introduction

A fluted centralizer is used to centralize wireline tool strings inside the tubing, during operations in deviated wells.

The fluted centralizer is positioned above the running or pulling tool in the tool string, and its OD is sized to suit the tubing. This procedure also allows the centralizer to be used as a drift or gauge, in addition to centering the tool string.



II. General Technical Parameters

Tubing OD Fishing neck Connection Size PN.
2-3/8″ 1.375″ 15/16-10UN 1.875″ W09-07.**
2-7/8″ 1. 375″ 15/16-10UN 2.25″ W09-07.**
3-1/2″ 2.313″ 1-9/16-10UN 2.81″ W09-07.**
4-1/2″ 2.313″ 1-9/16-10UN 3.75″ W09-07.**

Note: More customized parts are available upon request.



III. Structural features:

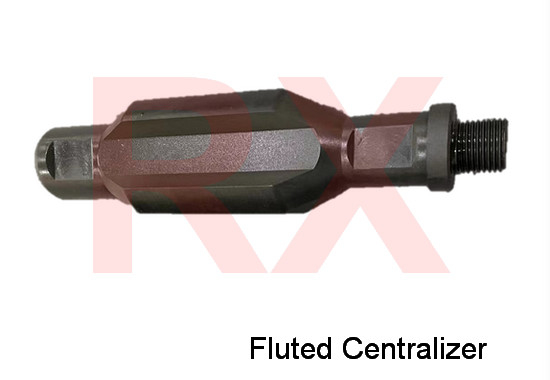

The fluted centralizer has a simple structure, its top has standard outer fishing neck and external thread (or quick male joint) to connect the top tool string, and its bottom has standard inner screw thread (or quick female joint) to connect the bottom tool string.

The middle OD of fluted centralizer is larger than the diameters of both ends and larger than OD of other downhole tools, and there is a launder out of it (hence the name) so that the fluid passes while entering the well to avoid crown drilling.

Welcome to contact us at any time.
