Connection QLS 1.5inch Wireline Knuckle Joint Slickline Tool

Connection QLS 1.5inch Wireline Knuckle Joint Slickline Tool

  • Connection QLS 1.5inch Wireline Knuckle Joint Slickline Tool
  • Connection QLS 1.5inch Wireline Knuckle Joint Slickline Tool
  • Connection QLS 1.5inch Wireline Knuckle Joint Slickline Tool
  • Connection QLS 1.5inch Wireline Knuckle Joint Slickline Tool
Connection QLS 1.5inch Wireline Knuckle Joint Slickline Tool
Product Details:
Place of Origin: China BaoJi
Brand Name: RuiXin
Certification: API
Model Number: 1.5inch
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 2-3 weeks
Payment Terms: T/T
Supply Ability: 1 set 2weeks
Contact Now
Detailed Product Description
NAME: Connection QLS 1.5inch Wireline Knuckle Joint Slickline Tool SIZE: 1.5inch
FISHING NECK: 1.375inch CONNECTION: 1.5"QLS Quick Couplings
MATERIAL: Alloy Steel&Nickel Alloy OPERATION: Wireline Operation And Slickline Operation

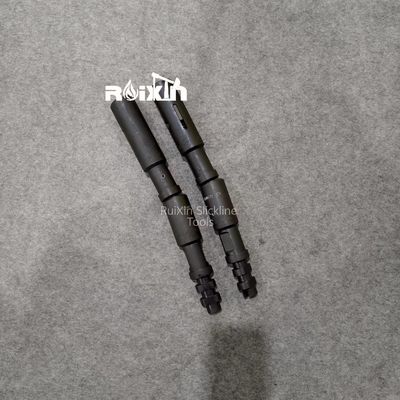

Connection QLS 1.5inch Wireline Knuckle Joint Slickline Tool

I.Overview:

The Wireline Knuckle joint is a ball-shaped design that can deflect the Angle between the jar and the pulling tool to facilitate the adjustment of the tool string to the tilt direction of the tubing, especially in the curved tubing and wire work in the directional well, the Wireline Knuckle Joint is essential.A Wireline Knuckle joint is a wire tool attachment used to provide bending to a string of tools.Because the weight bar and jar cannot adjust the bend, the Wireline Knuckle Joint can ensure the normal operation of the wire.
II.Note:

1. The Wireline Knuckle Joint is usually connected under the jar.

2. When the Wireline Knuckle Joint is not used as a steering tool, it must be connected above the steering tool.

Connection QLS 1.5inch Wireline Knuckle Joint Slickline Tool 0

III.Any size can be customized according to customer requirements.

IIII.Technical parameters

Size FISHING NECK CONNECTION
1.25" 1.187" 1.25 ″QLS
1.5" 1.375" 1.5″QLS
1.75″ 1.375" 1.5″ QLS
1.875" 1.75" 1.875″ QLS
2.125" 1.75" 2.125"QLS
2.5" 2.313" 2.5"QLS
