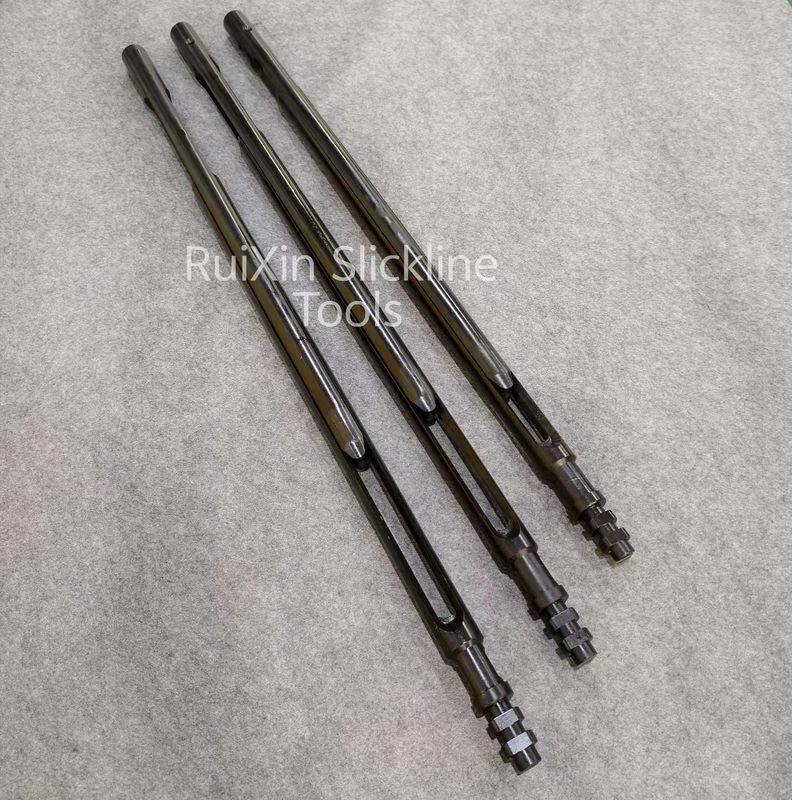

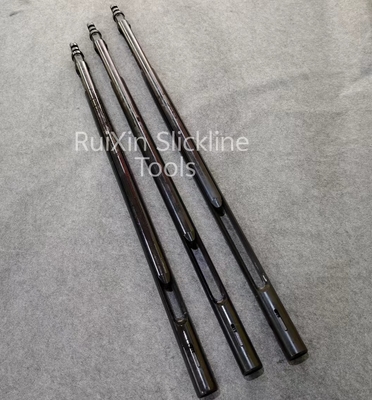

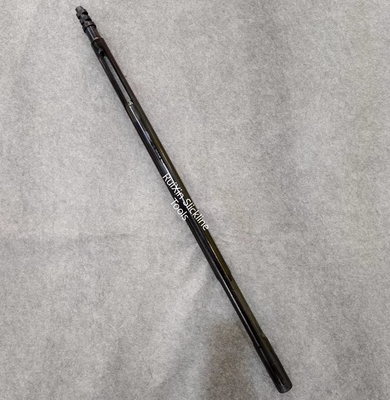

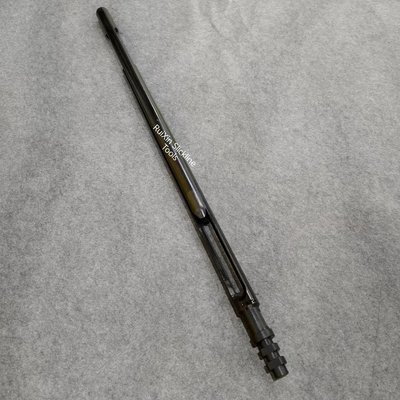

Wireline Slickline Tools Mechanical Spang Jar QLS 1.25inch～2.5inch

Wireline Slickline Tools Mechanical Spang Jar QLS 1.5inch～2.5inch

Product overview

The Mechanical Spang (Link)Jar are mainly used to cut the pins during the retrieval of downhole tools , or to provide a jolt force far greater than the pull of the wire to complete the job when a strong force is required to retrieve downhole tools .The Mechanical Spang (Link)Jar is connected to the lower end of the weight stem bar, and the process of jar is a work process. To obtain a large jar force, it mainly depends on the mass of the weight stem bar and the relative motion speed of the main and secondary chains of The Mechanical Spang (Link)Jar , The speed of the downward movement is obtained by the downward gravity movement of the weight stem bar, so the force is limited, and the speed of the upward movement can be obtained by the speed of the winch drum, and if the winch is operated properly, a large upward speed can be obtained.


Common technical parameters



.Any size can be customized according to customer requirements.
◆About Baoji RuiXin Slickline Tools

Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.

◆Strict quality control system

Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.

◆Hard work, after-sales service

On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.

Welcome to contact us at any time.
