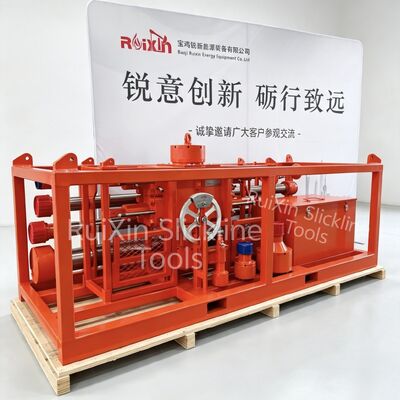

Slickline PCE Skid 10,000 PSI  Wireline Pressure Control Equipment

Slickline PCE  Skid   10,000 PSI  Wireline Pressure Control Equipment

Main technical parameters

Transportation skid-mounted unit

It is mainly composed of welded parts such as the frame, pressure plate and fixed seat .

Size  (mm)  3440*1300*1265

Maximum gross weight 2760 kg

Steel wire Rope load  3000kg

Pay load  1900kg

Tare mass  860kg

BOP

Bop  is 6-3/8"Tube ID, 10, 000psi WP, H2S service, doubie ram, 11-1/2"quick unions top and bott.om and three sets of rams

It can be replaced as needed (including shear/blind rams) for 0.125-inch Slickline and braided line operations.

Hydraulic stuffing box

Pulley diameter: 16" Apply the biggest wire specifications: 0.125 "; Safe load: 25 KN (12.5 KN wire); Working  Pressure: 70 mpa; Connection  4-3/4-4ACME DL, type B.

Light weight Lubricator

Size 6.38″×10ft   ID : 162;    Working Pressure: 70 MPa;     Strength test: 105 MPa;   Connection type: 11-1/2 - 4 ACME.0 type.

Size  4″×10ft     ID :  102     Working Pressure: 70 MPa;     Strength test: 105 MPa;     Connection type: 6-1/2-4ACME.

Wireline Grease Injection Control Head

Working force: 70 MPa;  Cable diameter 3/16″～15/32″    Connection type 4-3/4-4×2 ACME .B

It can be equipped with 3 to 9 grade flow-blocking tubes at will.

Crossover  Quick Union

ID 4″   Upper part Connection  6-1/2-4ACME .0 Type   Bottom Connection 11-1/2-4ACME.0 Type Working Pressure 10KPSI

ID 76.2mm   Upper part Connection  4-3/4-4ACME DL.B Type . Bottom Connection  6-1/2-4ACME.OType.  Working Pressure 10KPSI

Any size can be customized according to customer requirements

This device is also equipped with a pulley and a ground pulley. The wire hoist includes a lifting plate, a parallel clamp, a wire rope, and a shackle. There is also a hand pump and a pipeline.

Please pay attention to daily maintenance and care, and wear the threaded protector when storing.

◆About Baoji RuiXin Slickline Tools

Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.

◆Strict quality control system

Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.

◆Hard work, after-sales service

On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.

Welcome to contact us at any time.
