Innovation Excellence
 |
| Place of Origin: | China BaoJi |
| Brand Name: | RuiXin |
| Certification: | API |
| Model Number: | GP-A |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Wooden Box |
| Delivery Time: | 4-5 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1 set 4 weeks |
| NAME:: | Wireline Spooler Wireline Tools Wireline Pressure Control Equipment | SIZE: | Cable Specification 0.092 Inch-5/16inch |
|---|---|---|---|
| Roller Outside Diameter: | ￠1200MM | Axial Adjustment Size: | 300～930MM |
| MOTOR POWER: | 7.5KW | MATERIAL: | Alloy Steel |
| High Light: | Wireline Pressure Control Spooling Unit,Alloy Steel Wireline Spooler,1200mm Wireline Spooler |
||
Wireline Spooler Wireline Tools Wireline pressure control equipment
I. Overview:
The Wireline Spooler is mainly used to introduce the wire on the drum into the truck, or the wire on the truck into the drum. It is simple in structure and convenient in operation, and plays a very good auxiliary role in the operation preparation stage.
II.Structure characteristics

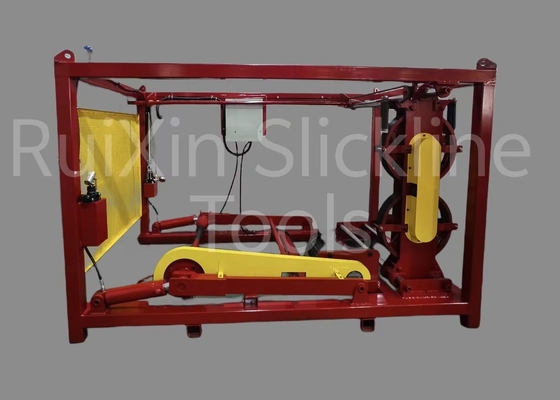

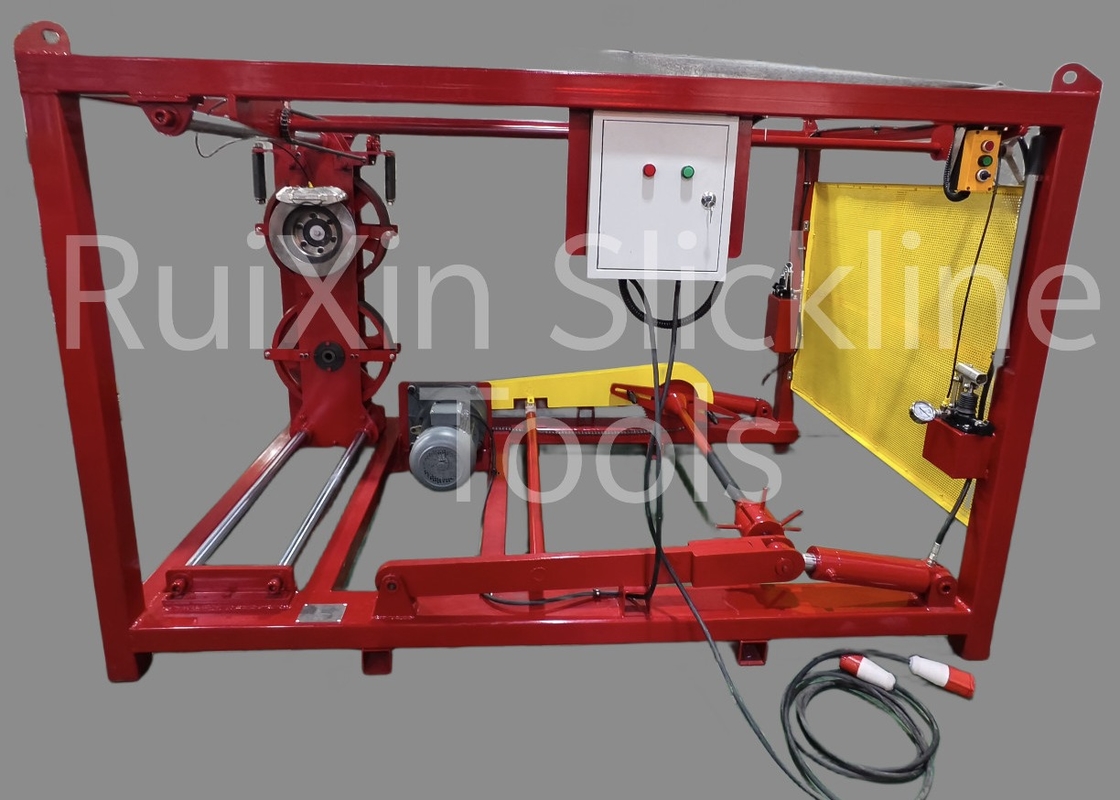

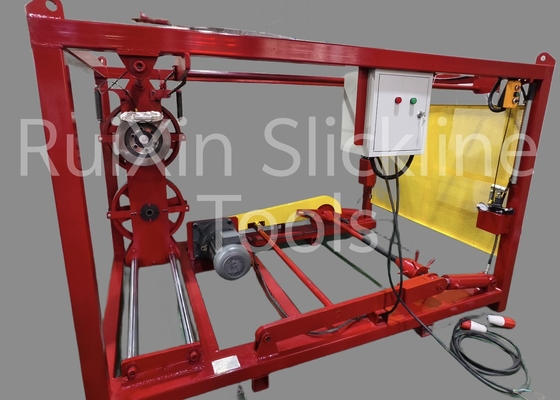

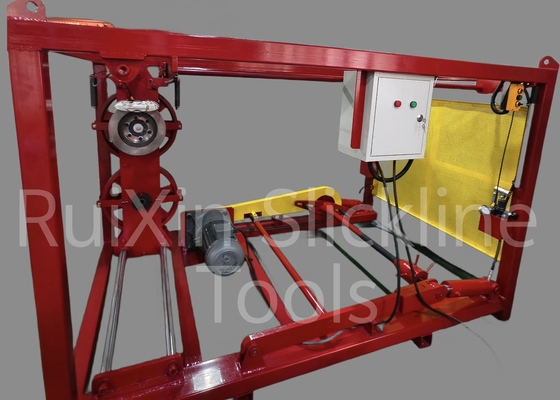

The Wireline Spooler is composed of a frame, a motor, a drum support, a lead screw assembly, a hydraulic cylinder, a motor controller, etc. The main body of the frame is welded by square pipe, which is the main bearing structure of the rope winder. The motor drives the sprocket through the chain for one stage deceleration, and the sprocket is directly connected to the drum to install the dial, so as to run without the cylinder. The two ends of the drum can be adjusted according to the size and length of the steel wire drum through the lead screw and lock the fixed wire drum, and the screw on the dial is positioned on the drum section to drive the rolling simple to rotate. The roller support is lifted under the operation of the flow cylinder, which is labor-saving and safe.
III.Precautions:
1. Do not approach the motor and belt when the wire reel is working;
Any size can be customized according to customer requirements
◆About Baoji RuiXin Slickline Tools
Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.
◆Strict quality control system
Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.
◆Hard work, after-sales service
On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.
Welcome to contact us at any time.
