Introduction

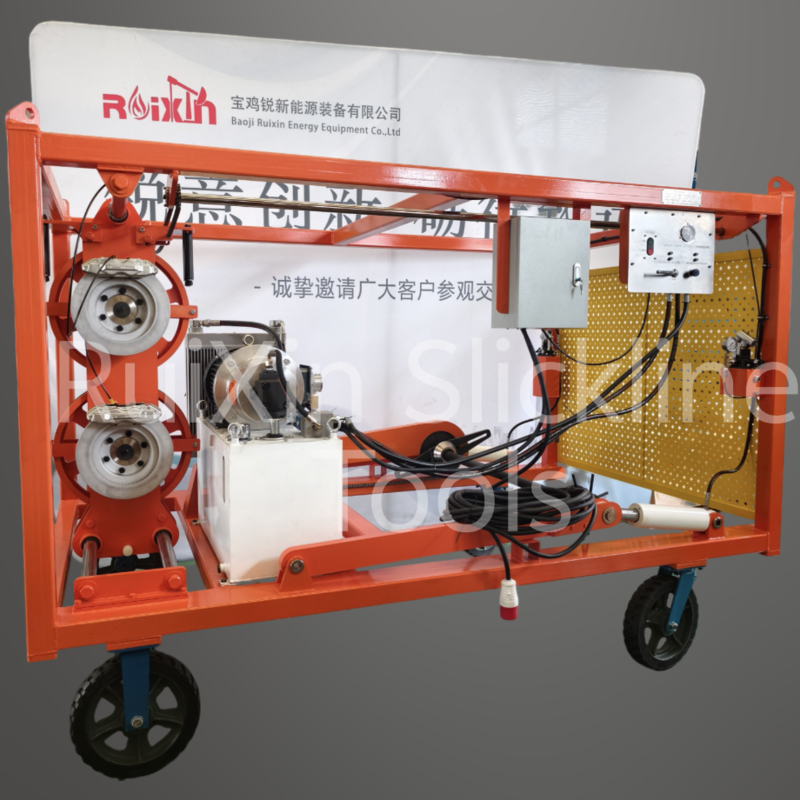

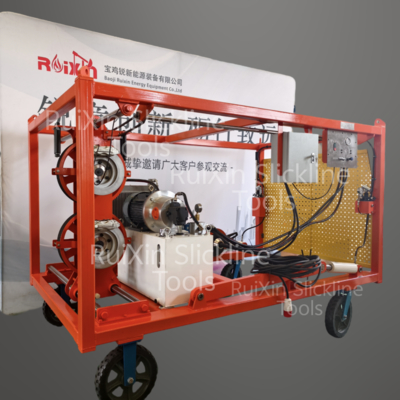

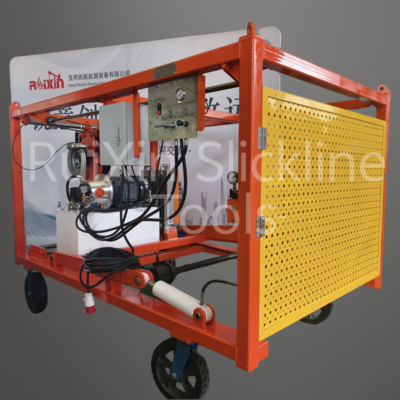

The hydraulic spooler is that the hydraulic system drives the hydraulic motor. The hydraulic motor transmits power to the chuck through the chain. The chuck drives the roller to rotate, and the cable (or wire) is wound around the roller at a uniform speed. This equipment is made of steel frame structure using panel centralized operation control at the same time, has the characteristics of high strength and easy to operate. Install tires It can drive easily on the ground and brake.

Specification

This equipment is mainly composed of a frame, a hydraulic system, a hydraulic motor, a rope guide wheel, an operation panel, a transmission shaft, a disc brake and other major components.

Size                    2035×2035×2658 (mm)

Total weight       2216kg

Suitable for any type of cable between 0.092″and 5/16"diameter.

Max. Spooler Drum Diameter:φ1700mm.

Applicable for Spooler Drum Width≤1200mm.

Maximum cable tension between the shipping drum and the tensioning system (capstan):200Ibs.

Hydraulic transmission Pump / Motor Steel wheel 500mm (20in dia)；

6 active grooves on upper wheel and 5 active grooves on lower wheel

Maximum cable tension between the capstan and the wireline unit:3000Ibs.

External Electrical power supply 380v-440v /50-60Hz 3 phase power input.

The equipment can be customized according to the customer's requirements.

Note:

Standard configuration can operate in -10deg. C to +50deg. C.Forklift pockets.

Tie down point integrated in frame.

Manufactured in steel frame construction.

Open end design to easily install or remove all standard drums using manual hydraulic pistons.

Fixed Tensioning system (capstan) support arm.
