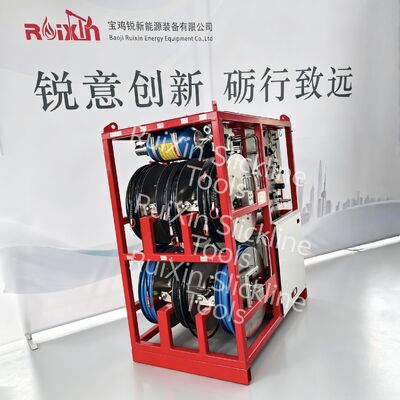

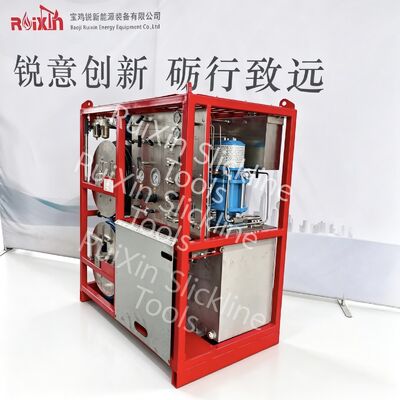

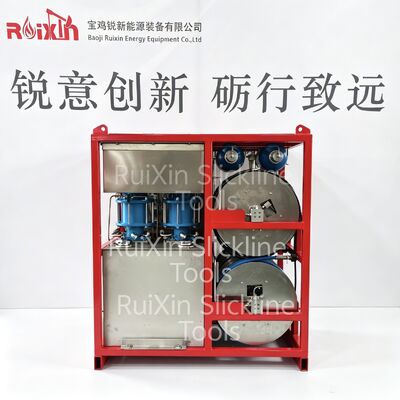

Slickline PCE Hydraulic Control Grease Injection Pump System 5000PSI ～15000PSI API Wireline Equipment

Slickline PCE Hydraulic Control Grease Injection Pump System 5000PSI ～15000PSI  API Wireline Equipment

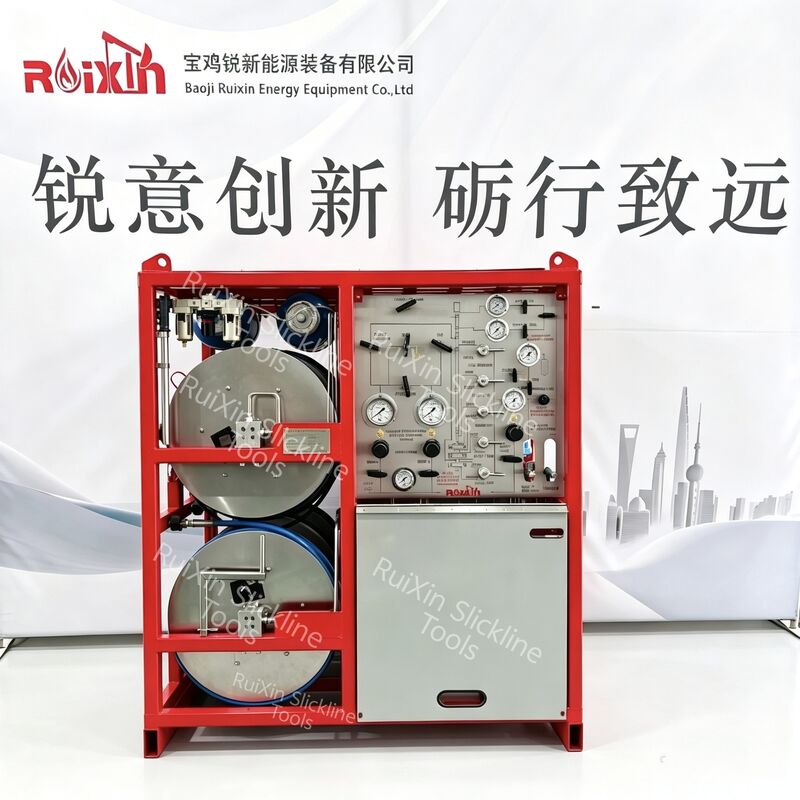

I. Overview

The grease injection section is designed to provide a pressurized and return system for the grease injection pipe and the grease injection sealing head. When the wire or cable is in operation, the high-pressure grease output from the grease injection pump enters the lower part of the flow restrictor pipe and flows upward, finally being discharged from the upper outlet of the flow pipe. This creates a high pressure value within the flow restrictor pipe, achieving the purpose of lubricating the cable (or wire) and sealing the wellhead pressure.

The hydraulic control section mainly consists of oil pumps, accumulators, directional valves, safety valves and other supporting equipment, enabling a rapid and safe switching device for the blowout preventer, blowout control box, upper catcher, lower catcher, anti-drop device, etc. All operations are integrated on the operation panel, making it convenient for operation.

II. Main Technical Parameters

 1. Specification and Model: YK-70/21-Y;

 2. Rated Output Pressure: 70 MPa;

 3. Driving Air Pressure: 0.7 - 1 MPa;

 4. Hydraulic Output: 21 MPa;

III. Structural Characteristics

1. The hydraulic injection pump is divided into three major systems: the intake assembly, the injection system, and the hydraulic control system, which are all installed on the same frame;

2. The intake assembly mainly consists of the air source main valve, pipelines, pressure regulators, etc.;

3. The injection system mainly consists of the injection pump, high-pressure needle valve, injection drum, BOP drum, injection hose, discharge drum, and pipeline assembly, etc.

4. The hydraulic control system mainly consists of the hydraulic control drive pump, accumulator, control valves, hydraulic hoses, drums, and pipeline assembly, etc.

5. Both the grease injection system and the hydraulic system are equipped with their own oil (grease) storage tanks (storage boxes can be optionally provided).

6. The grease injection pump and the hydraulic control drive pump are driven by pneumatic means for grease/suction.

7. The grease injection system and the hydraulic control system can operate independently or simultaneously.

Any size can be customized according to customer requirements

Attention

Maintenance and servicing

1. Regularly add lubricating oil to the oil misters in the intake system. It is recommended to use N32 (20#) oil in winter and N46 (30#) oil in summer;
2. Conduct pipeline sealing tests regularly.

◆About Baoji RuiXin Slickline Tools

Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.

◆Strict quality control system

Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.

◆Hard work, after-sales service

On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.

Welcome to contact us at any time.
