Safety Valve Wireline Lock Mandrel Force Open Tool

Safety Valve Wireline Lock Mandrel Force Open Tool

  • Safety Valve Wireline Lock Mandrel Force Open Tool
Safety Valve Wireline Lock Mandrel Force Open Tool
Product Details:
Place of Origin: China Baoji
Brand Name: Ruixin
Certification: API
Model Number: 2.813inch 3.813inch
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 3-4 weeks
Payment Terms: T/T
Supply Ability: 1 set 3 weeks
Contact Now
Detailed Product Description
Name: Safety Valve Forced Opening Tool Wireline Lock Mandrel Size: 2.813inch 3.813inch
Fishing Neck: 1.375inch-2.313inch Connection: 15/16UN 1-1/16UN
High Light:

Safety Valve Wireline Lock Mandrel

,

Force Open Tool Lock Mandrel

,

Safety Valve Opening Tool Wireline



Safety Valve Forced Opening Tool Wireline Lock Mandrel

I. Overview:



The safety valve forced opening tool is used to permanently open the safety valve after the downhole safety valve fails.

II. Common technical parameters:



Size  Fishing Neck Connection
1.875" 1.375" 15/16-10UN.
2.313" 1.75" 1-1/16-10UN
2.813" 2.313" 1-1/16-10UN
3.813" 2.313" 1-1/16-10UN



III. Structural characteristics:



The safety valve forced opening tool is composed of upper joint, collet, upper retaining ring, key, lower retaining ring, outer cylinder, mandrel, retaining ring, spring, retaining ring, support cylinder, shearing screw, plug cap, etc.
The upper end of the upper joint has a standard outer salvage neck, which is used to connect to the lower part of the basic tool string. between the rings.



IV.Matters needing attention:



1. Before going downhole, check whether the key can be retracted and bounced;
2. When not in use temporarily, remove the support cylinder and other parts at the lower part of the outer cylinder to prevent failure after long-term storage.



Welcome to contact us at any time.

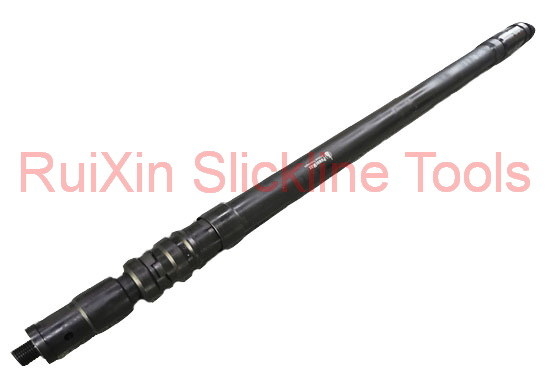

Safety Valve Wireline Lock Mandrel Force Open Tool 0
