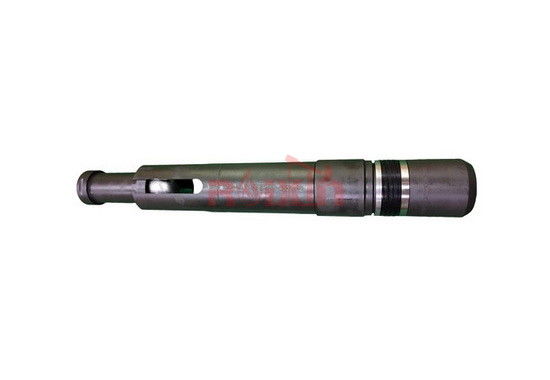

2.25 Inch FB-2 Check Valve Wireline Lock Mandrel Equalizing Running Tool

2.25 Inch FB-2 Check Valve Wireline Lock Mandrel Equalizing Running Tool

  • 2.25 Inch FB-2 Check Valve Wireline Lock Mandrel Equalizing Running Tool
2.25 Inch FB-2 Check Valve Wireline Lock Mandrel Equalizing Running Tool
Product Details:
Place of Origin: China Baoji
Brand Name: Ruixin
Certification: API
Model Number: 2.813inch 3.813inch
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 3-4 weeks
Payment Terms: T/T
Supply Ability: 1 set 3 weeks
Contact Now
Detailed Product Description
Name: FB-2 Equalizing Check Valve Wireline Lock Mandrel Size: 2.25 Inch
Fishing Neck: 1.75 Inch Application: Slickline Wireline
Service: STD&H2S
High Light:

Wireline Lock Mandrel Equalizing Running Tool


2.25 Inch Wireline Lock Mandrel


2.25 inch FB-2 Equalizing Check Valve Wireline Lock Mandrel


I. Overview:
FB-2 Equalizing Check Valve is actually a one-way plug, which can only withstand the pressure difference between the upper and lower. Compared with other plugs, it has the characteristics of convenient and reliable fishing.
The main purpose:
(1) Check whether the oil pipe is sealed;
(2) Setting hydraulic packer;
(3) Prevent the liquid from flowing back to the oil layer in the gas lift well;
(4) Protect the bottom layer when the top layer is increased.
II. Technical parameters:
Specifications: 2.25inch
Salvage neck: 1.75inch
III. Structural characteristics and use:
Use the casting tool to connect the FB-2 Equalizing Check Valve, go down to the Baker R-type seat joint, shock down and cut off the shearing pin to lift out the casting tool to complete the setting.
When pulling out, use the tool to shock and cut the hexagon socket flat end set screw upwards, lift the tool string up after the pressure at the upper and lower ends is balanced, and pull out the FB-2 Equalizing Check Valve.
IV, matters needing attention:
Before use, check whether the screws and sealing assemblies are damaged, and replace them in time if they are damaged.

Welcome to contact us at any time.
